Description

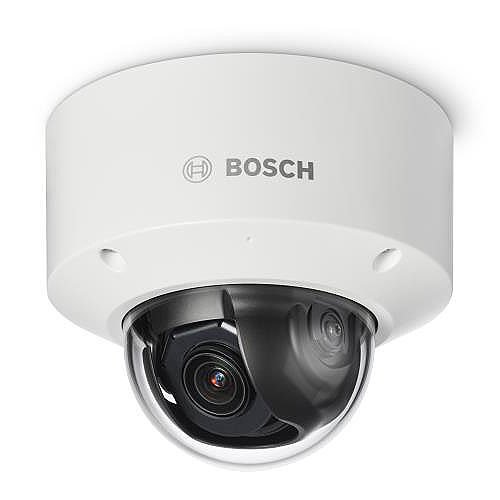

The FLEXIDOME IP indoor 8000i – 8 MP series surveillance camera is engineered for superior performance, featuring a 1/1.8″ sensor, starlight technology, and High Dynamic Range (HDR) at 4K Ultra HD resolution. This professional-grade IP camera delivers exceptionally detailed images even in difficult lighting conditions. Its innovative remote commissioning capability ensures that installation and setup are completed efficiently. With a single click using a PC or mobile device and the Bosch Project Assistant app, you can remotely pan, tilt, roll, and zoom (PTRZ) the camera to achieve the desired field of view without physically adjusting the camera or lens.

**Advanced Functions: Full Remote Commissioning**
Simplified IP camera installation has revolutionized professional video surveillance deployment. The FLEXIDOME IP indoor 8000i camera’s remote commissioning feature eliminates the traditional need to climb ladders. Installers can effortlessly perform configuration using the Bosch Project Assistant app on a PC or mobile device, enabling remote PTRZ adjustments. This process can be repeated post-installation by connecting to the camera through the app, web interface, or the Bosch Configuration Manager, enhancing installer flexibility.

**Rapid Performance**
Boasting high sensor resolution combined with a 30 fps frame rate, this camera is ideal for capturing fast-moving objects with precision, thus ensuring sharp situational awareness.

**Starlight Technology**
The integration of cutting-edge sensor technology with advanced image processing and noise suppression yields outstanding color sensitivity in low-light conditions. The camera maintains superior color performance even with minimal ambient illumination.

**High Dynamic Range Capability**
HDR mode uses a multi-exposure process that retains details in both highlights and shadows within the same frame. This functionality excels in scenes with challenging lighting, such as faces with strong backlighting, delivering a measurable dynamic range evaluated through Opto-Electronic Conversion Function (OECF) analysis per IEC 62676 Part 5 standards.

**Scene Modes Optimization**
The camera offers nine configurable scene modes, tailored with optimal settings for diverse applications. These can be selected with a single click to match specific environmental demands, such as traffic monitoring or retail surveillance.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP54
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-4°F
Operating Humidity100%

Exposure
Longest Shutter Speed1/25 Second
Minimum Illumination0.0098 lux
Shortest Shutter Speed1/15000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberNDV-8504-R
Packaged Quantity1
Product LineFlexiDome
Product ModelNDV-8504MP-R
Product NameFixed Dome8 mPMP HDR3 mP.9 mP-10 mPmm PTRZ
Product Series8000i
Product TypeCamera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.9-10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/1.6

Miscellaneous
Environmental CertificationChina RoHS, EU RoHS, EU WEEE, REACH, WEEE
Environmentally FriendlyYes
FeaturesAutomatic Defog, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Day/Night, Face Detection, Privacy Masking, Region of Interest, SD Card Local Storage, Tamper Detection, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor
Package ContentsFixed Dome 8MP HDR 3.9-10mm PTRZ1 x T-20 Security Torx Bit1 x Quick Installation Guide1 x Safety Information1 x Cable Conduit for Side Entry1 x Washer for Cable Conduitand more below, 1 x Adapter Plate for Cable Conduit (Ø 1/2" / M20), 1 x Adapter Plate for Cable Conduit (Ø 3/4" / M25)

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth6"-97"
DurabilityDust Resistant, Impact Resistant, Splash Resistant, Water Resistant
Form FactorDome
Height5"-83"
Product ColorWhite
Weight (Approximate)4-52 lb

Product Information
Diameter7"
Mount TypeSurface Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewWide: 117º x 62º (H x V); Tele: 44º x 24º (H x V)
HD RecordingYes
Lens TypeP-iris
Maximum Aperturef/2.7
Maximum Frame Rate30fps
Minimum Focal Length3.9 mm
Optical Zoom2.6x
