Description

Leveraging the advanced Wisenet 7 chipset, the PTZ PLUS AI surveillance camera delivers cutting-edge AI-driven object detection and auto-tracking capabilities for both people and vehicles, featuring dynamic target lock tracking.

– High-definition 2MP resolution
– Powerful 40X optical zoom
– Infrared viewable range up to 200m (656ft)
– 40x optical zoom lens (4.25mm~170mm)
– Unique -20° tilt allowing upward horizon view
– Integrated lens heater and spin dry function for effective water and snow removal
– Seamless 360° endless pan rotation
– Triple codec support: H.265/H.264/MJPEG
– Enhanced WiseStream III technology
– Exceptional Wide Dynamic Range (WDR)
– Azimuth display with cardinal and intermediate directions
– Advanced AI-based auto-tracking for objects (persons, vehicles) with target locking and intelligent video analytics
– AI-driven analytics: Object detection (person, face, vehicle, license plate), Intelligent Video Analytics (Virtual line/area detection, entrance/exit monitoring, loitering, direction analysis, intrusion detection), Event analytics (defocus detection, motion detection, tampering alerts, fog detection, audio detection, sound classification with optional network I/O box)
– Authentic Day/Night functionality
– Digital Image Stabilization (DIS) with built-in gyro sensor
– Dual memory slots supporting up to 512GB each
– Durability certifications: IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
– High Power over Ethernet (HPoE, IEEE802.3bt, Class6, Type3) with injector included
– Secure TPM 2.0 with FIPS 140-2 level 2 compliance
– Optional SPM-4210 Network I/O box for alarm and audio connectivity
– Operating temperature range from -40°C to +55°C (-40°F to +131°F)

Camera
Night Vision Distance656.17 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNP-C6403R
Product ModelXNP-C6403R

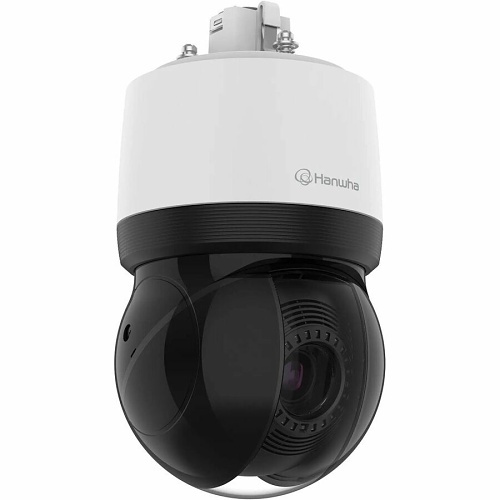

Product Name2MP, 40x, AI IR PTZ camera
Product SeriesXNP
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.25-170 mm
Lens IncludedYes
Maximum Focal Length170 mm
Minimum Aperturef/4.95

Miscellaneous
FeaturesAudio Detection, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack, White
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Product ColorWhite
Weight (Approximate)7.05 lb

Product Information
Diameter6.2"

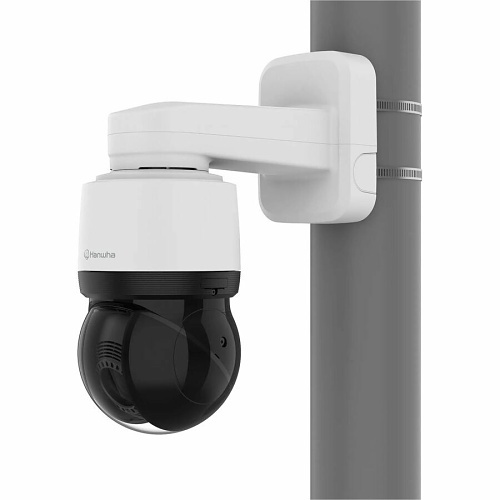

Mount TypeCeiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 65.66°(Wide)~1.88°(Tele) / V: 39.4°(Wide)~1.09°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate60 fps
Minimum Focal Length4.25 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom40x

Warranty
Limited Warranty3 Year
