Description

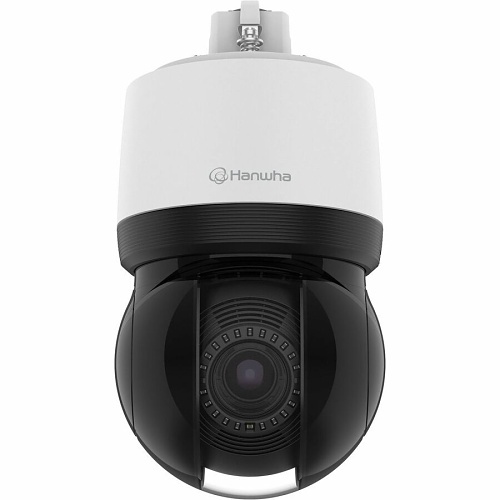

The PTZ PLUS AI camera, equipped with the advanced Wisenet 7 chipset, delivers cutting-edge AI capabilities for object detection and automated tracking of persons and vehicles with target lock tracking. Key features include:

– High-resolution 6MP imaging
– Powerful 25X optical zoom ranging from 5mm to 125mm
– -20° tilt capability for viewing above the horizon
– Integrated lens heater and spin dry functionality for effective removal of water and snow
– 360° endless panning for comprehensive coverage
– Support for triple codec formats, including H.265, H.264, and MJPEG
– Enhanced video performance with WiseStream III technology
– Extreme WDR for superior image clarity
– Azimuth display featuring cardinal and intermediate direction indicators
– Intelligent AI-based auto-tracking for both persons and vehicles, accompanied by target lock tracking and sophisticated video analytics
– AI-driven analytics events such as object detection (person, face, vehicle, license plate), IVA with virtual line crossing, area detection, entry/exit, loitering, directional analysis, and intrusion detection
– Additional analytics include defocus, motion, tampering, fog, and audio detection, alongside sound classification when paired with the optional network I/O box
– True day/night functionality for round-the-clock surveillance
– Digital Image Stabilization (DIS) with a built-in gyro sensor
– Dual memory slots supporting up to 512GB each
– Robust construction with IP66, IK10, NEMA4X, and NEMA TS-2 compliance for vibration and shock resistance
– Power over Ethernet Plus (PoE+) compatibility
– Enhanced security with TPM 2.0 and FIPS 140-2 level 2 certification
– Optional SPM-4210 Network I/O box for extended alarm and audio I/O capabilities
– Wide operating temperature range from -40°C to +55°C (-40°F to +131°F)

This state-of-the-art PTZ camera is designed for performance and reliability, making it ideal for advanced surveillance applications.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNPC8253
Product ModelXNP-C8253
Product Name6MP 25x AI PTZ Camera
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length5-125 mm
Lens IncludedYes
Maximum Focal Length125 mm
Minimum Aperturef/3.73

Miscellaneous
FeaturesAlarm Triggering, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, PTZ, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyDual Color
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Product ColorBlack, White
Weight (Approximate)7.05 lb

Product Information
Diameter6.2"

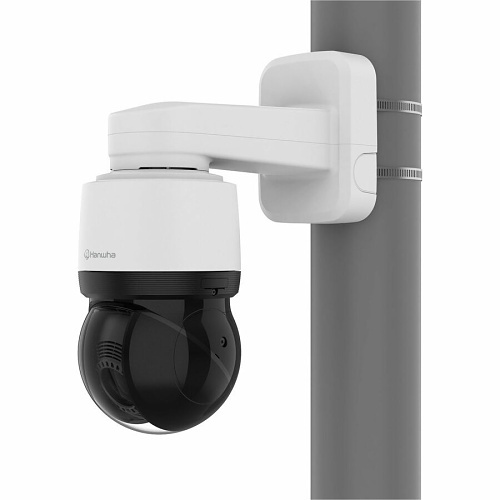

Mount TypeCeiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution6MP
Field of ViewH: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length5 mm
Optical Zoom25x

Warranty
Limited Warranty3 Year
