Description

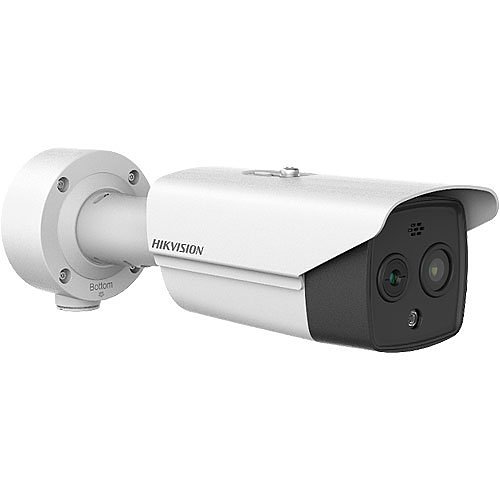

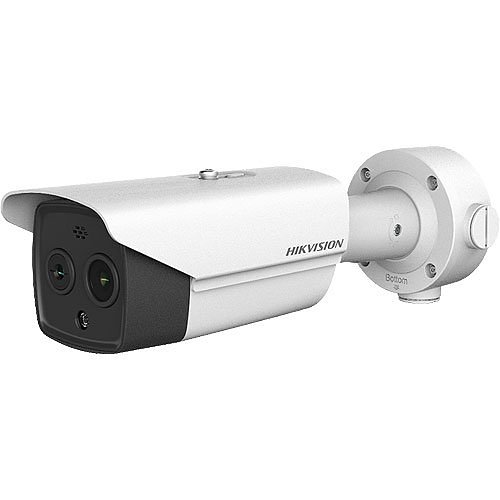

The Hikvision DS-2TD 2628T Thermal and Optical Bullet Cameras are designed with advanced thermal and optical sensors, alongside a powerful graphical processing unit that supports sophisticated video content analysis algorithms powered by Hikvision’s deep learning technology.

– Features 256 × 192 thermal resolution, 12 µm, VOx UFPA sensor with NETD < 40 mK (25°C, F1.0).
– Capable of precise video content analysis, including vehicle and human classification.
– Includes a temperature exception alarm for proactive fire prevention measures.
– Delivers high-accuracy temperature exception alarms ranging from -20°C to 550°C (-4°F to 1022°F) with ± 2°C (± 3.6°F) precision.
– Offers thermal lens options of either 3mm or 7mm.
– Supports PoE (802.3af) and 12 VDC power supply, requiring a maximum of 6.5 W.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution2688 x 1520
Thermal Image Sensor TypeVanadium Oxide Uncooled Focal Plane Arrays

Environmental Conditions
Maximum Operating Temperature149°F (65°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2TD2628T-3/QA
Product LineHeatPro
Product ModelDS-2TD2628T-3/QA
Product NameBi-spectrum Thermography Network Bullet Camera
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4 mm
Lens IncludedYes
Maximum Focal Length4 mm
Maximum Thermal Focal Length0.14"

Miscellaneous
Features3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Cross Line Detection, HTTPS Encryption, Human Detection, SD Card Local Storage, Smoke Detector, Surge Protection, White Balance
Indoor/OutdoorOutdoor
Package Contents Bi-spectrum Thermography Network Bullet Camera Conduit Base

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Waterproof
Form FactorBullet
Product ColorWhite
Weight (Approximate)3.42 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeConduit Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of View50.0° × 37.3° (H × V) , 84.0° ×43.1° (H × V)
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length4 mm
Night VisionYes
Night Vision TypeInfrared
Video Signal FormatNTSC, PAL

Video
Thermal Video Resolution256 x 192
