Description

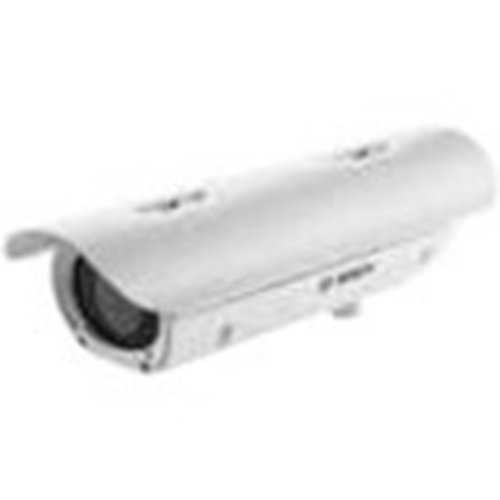

This thermal IP camera offers high-sensitivity thermal imaging through an uncooled vanadium oxide microbolometer, ensuring exceptional image quality. It integrates the advantages of thermal imaging with leading-edge Intelligent Video Analytics technology. The camera requires no natural or artificial illumination to monitor areas of interest, delivering clear and detailed images both day and night, even under challenging conditions such as smoke, dust, haze, or fog. It is available in versions with either narrow field-of-view (NFOV) or wide field-of-view (WFOV) lenses. The QVGA resolution model offers frame rates of 9 or 60 fps, while the VGA resolution model supports frame rates of 9 or 30 fps. Housed in a durable outdoor casing, this camera is suitable for a variety of demanding environmental applications.

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution640 x 480
Thermal Image Sensor TypeUncooled Vanadium Oxide Microbolometer

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberNHT-8000-F19QS
Packaged Quantity1
Product LineDINION IP
Product ModelNHT-8000MP-F19MPQS
Product NameNHT-8000 mP-F19 mPQS DINION THERMAL,
Product Series8000
Product TypeIP Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length19 mm
Lens IncludedYes
Maximum Focal Length19 mm
Maximum Thermal Focal Length0.75"

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
FeaturesAuto Tracking, Cross Line Detection, Enter/Exit Detector, Region of Interest, SD Card Local Storage
Indoor/OutdoorOutdoor
Package Contents 1 x DINION IP Thermal 8000 Camera 1 x Power Connector (2 Pins) 1 x Data/Alarm Connector (12 Pins) 1 x Hex Wrench 1 x Installation Guided

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Waterproof
Form FactorBullet
Height5"-6"
Product ColorWhite
Weight (Approximate)7-72 lb
Width6-5"

Power Description
Input Voltage24V AC

Product Information
Length16-9"
Mount TypeBracket Mount, Ceiling Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View: 16°H x 12°V
HD RecordingNo
Lens TypeFixed
Maximum Frame Rate9fps
Minimum Focal Length19 mm
Video Signal FormatNTSC

Video
Analog Video Signal FormatCVBS
