in stock
Special Order
$6,176.20

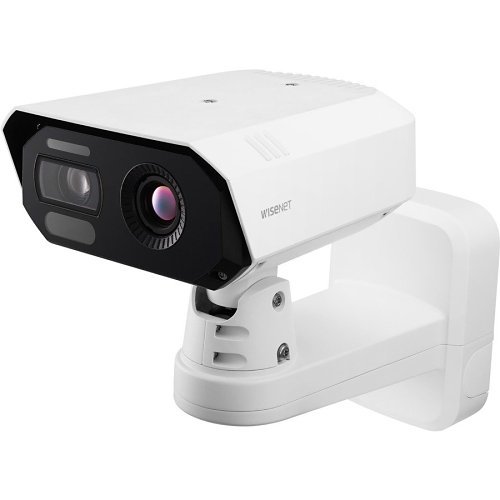

The TNM-C4960TD, C4950TD, and C4940TD cameras deliver dual imaging capabilities, featuring both VGA-resolution thermal imaging and an 8MP high-resolution visible sensor. This integration enables swift and precise object detection by concurrently utilizing the temperature-monitoring thermal camera alongside the high-definition 8MP visible camera.
| Camera | |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 640 x 480 |
| Number of Sensors | 2 |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -58°F |
| Operating Humidity | |
| Exposure | |
| Longest Shutter Speed | 1/12000 Second |
| Minimum Illumination | 0.005 lux |
| Shortest Shutter Speed | 1/5 Second |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Manufacturer Part Number | TNM-C4960TD |
| Product Model | TNM-C4960TD |
| Product Name | Bi-spectrum AI Thermal Camera |
| Product Series | T |
| Product Type | Thermal Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 25 mm|10.9-29 mm |
| Lens Included | Yes |
| Maximum Focal Length | 29 mm |
| Maximum Thermal Focal Length | 0.98" |
| Miscellaneous | |
| Features | Alarm Triggering, Audio Compression, Face Detection, Human Detection, Motion Detection, Privacy Masking, SD Card Local Storage, Vehicle Detection |
| Impact Protection Rating | IK10 |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Color Family | White |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Product Color | White |
| Weight (Approximate) | 9.99 lb |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 8MP |
| Field of View | H: 42.0°-15.0°, V: 22.8°-8.4°, D: 48.7°-17.1° |
| HD Recording | Yes |
| Lens Type | Varifocal |
| Maximum Aperture | F1.0 |
| Maximum Frame Rate | 30 fps |
| Minimum Focal Length | 10.9 mm |
| Optical Zoom | 2.7x |
