Description

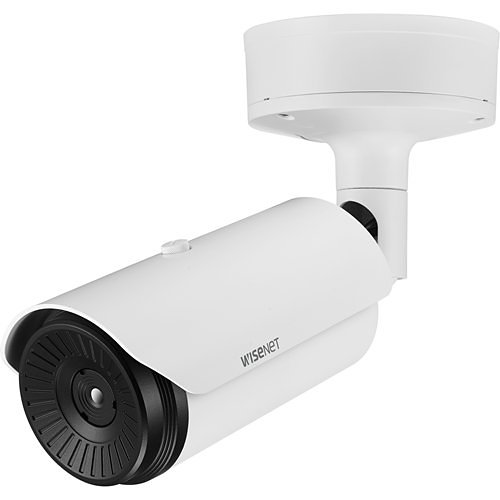

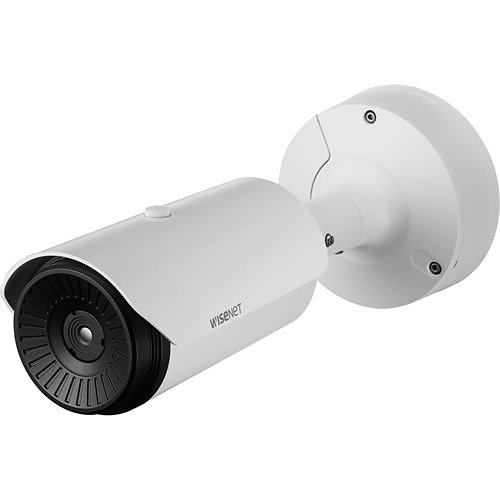

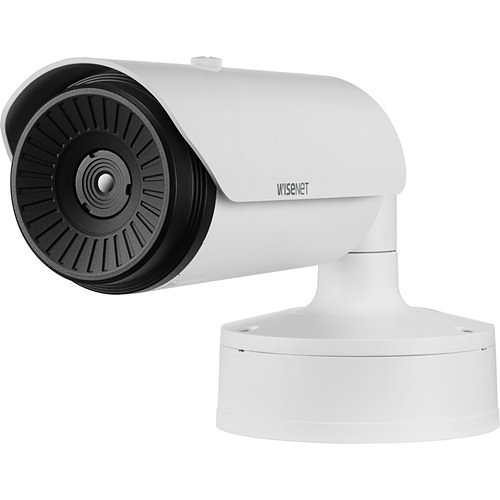

In challenging environmental conditions such as fog, smoke, rain, or inadequate lighting scenarios like complete darkness and backlighting, traditional visible surveillance cameras and the human eye often struggle to precisely identify people or objects in complex backgrounds. T series thermal cameras offer a solution by generating high-contrast images based on thermal variations between objects and their surroundings, enabling effective incident detection. Leveraging state-of-the-art thermal imaging technology, these cameras reveal unseen details without the need for supplementary lighting. The TNO-3010T, a cost-efficient QVGA thermal bullet network camera, comes equipped with a 2.7mm lens capable of detecting human presence up to 135 meters and vehicles up to 345 meters. It features advanced specifications such as H.265/H.264 compression, WiseStream II technology, Intelligent Analytics, bi-directional audio, SDXC edge storage, Power over Ethernet (PoE), support for 24VAC and 12VDC, and robust environmental protection standards including IP66, NEMA4X, IK10, with a broad operating temperature range.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200
Thermal Image Sensor TypeUncooled Microbolometer

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

General Information
Brand NameHanwha Vision
Edge EnabledYes
ManufacturerHanwha Group
Manufacturer Part NumberTNO-3010T
Product ModelTNO-3010T
Product NameQVGA Thermal Bullet Camera
Product SeriesT
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.7 mm
Maximum Thermal Focal Length0.11"

Miscellaneous
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorBullet
Product ColorWhite
Weight (Approximate)5.54 lb

Product Information
Diameter5.8"
Mount TypeDesktop Mount, Rack Mount, Wall Mount

Technical Information
Connectivity TechnologyWired
HD RecordingNo
Lens TypeFixed

Video
Thermal Video Resolution320 x 240
