| Certifications | |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 1600 x 1200 |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Operating Humidity | 95% |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNOC3012TRA |
| Product Model | TNO-C3012TRA |
| Product Name | TNO-C3012TRA Radiometric AI Thermal Camera |
| Product Series | T |
| Product Type | Network Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | Yes |
| Maximum Thermal Focal Length | 0.17" |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Audio Detection, Digital Image Stabilization, Mirror, Motion Detection, Multi-view Stream, Privacy Masking, Sound Detection, Tampering Alarm, Temperature Sensor, Video Management System |
| Impact Protection Rating | IK10 |
| Package Contents | 1 x TNO-C3012TRA Radiometric AI Thermal Camera 1 x Backbox |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Color Family | White |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Product Color | White |
| Weight (Approximate) | 3.75 lb |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 3.7" |
| Mount Type | Backbox Mount |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Field of View | H: 90° / V: 65.3° / D: 118.6°(iFoV: 3.9 mRad) |
| HD Recording | Yes |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 8 fps |
| Video | |
| Thermal Video Resolution | 768 x 576 |
| Warranty | |
| Limited Warranty | 5 Year |

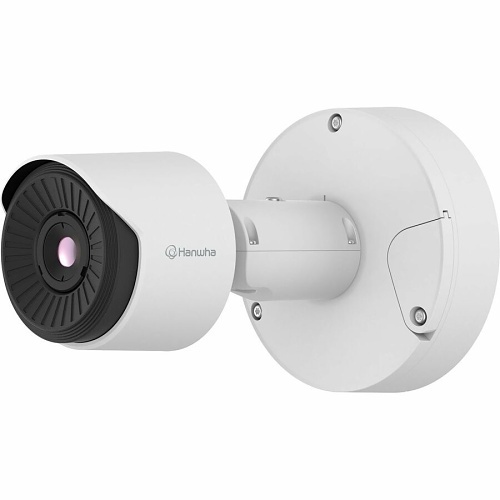

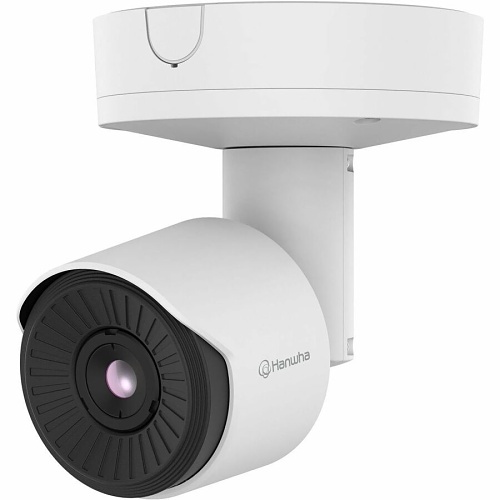

Hanwha TNO-C3012TRA QVGA Radiometric AI Thermal Camera, 4.4mm Fixed Focal, IP66, IK10, White
in stock
Special Order
$3,186.80
- Artificial Intelligence-powered object classification for accurate detection of people and vehicles
- Advanced performance detector with specifications of 17µm and NETD 30mK for superior imaging
- QVGA resolution (384x288) with a wide-angle Field of View of 90° for comprehensive coverage
- Operates effectively across a broad temperature range from -40°C to 550°C (-40°F to 1,022°F)
- Compact and lightweight camera design (Φ147 * 233.5mm, 1.7KG) ensures easy and convenient installation
- Supports up to 8 frames per second at all resolutions, compatible with H.265, H.264, and MJPEG formats
SKU:
TNO-C3012TRA
Categories: IP Cameras, Thermal Imaging Cameras, Video Surveillance
Brand: Hanwha Vision
