| Certifications | |
| Ingress Protection Rating | IP66 |
| TAA Compliant | No |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 320 x 240 |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Operating Humidity | 90% |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNO-L3030T |
| Product Model | TNO-L3030T |
| Product Name | Lower Frame Rate QVGA Thermal Camera |
| Product Series | T |
| Product Type | Network Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 13.7 mm |
| Lens Included | Yes |
| Maximum Focal Length | 13.70 mm |
| Miscellaneous | |
| Features | Audio Detection, Day/Night, Digital Image Stabilization, Mirror, Motion Detection, Privacy Masking, Removable IR Cut-off Filter, Shock Detection, Tamper Detection, Tampering Alarm, Video Content Analytics, Wide Dynamic Range |
| Impact Protection Rating | IK10 |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Color Family | White |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Product Color | White |
| Weight (Approximate) | 5.54 lb |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Diameter | 5.8" |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Field of View | H:16.0°, V:12.0°, D:20.0° |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 8 fps |
| Minimum Focal Length | 13.7 mm |
| Video | |
| Analog Video Signal Format | CVBS |
| Thermal Video Resolution | 320 x 240 |

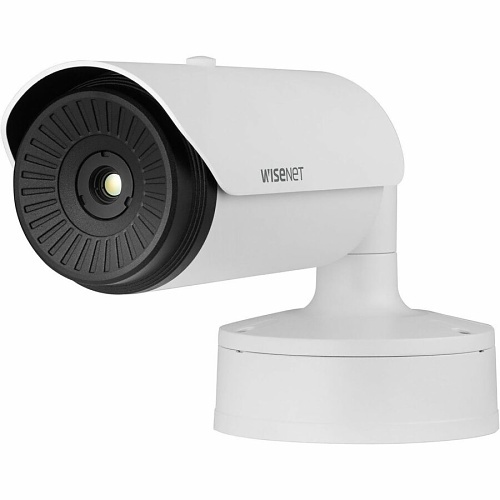

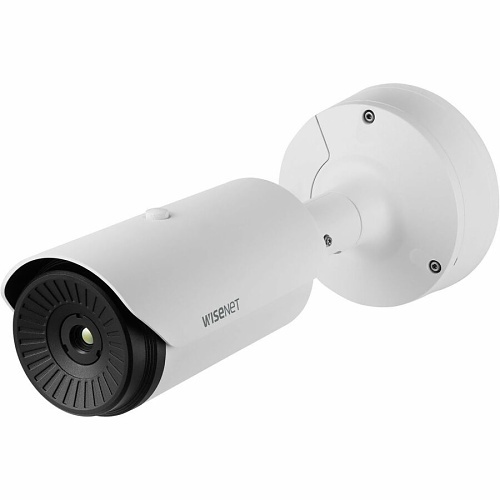

Hanwha TNO-L3030T QVGA Thermal Bullet Camera, 320 x 240 Maximum Resolution
in stock
Special Order
$2,312.54
- Network camera - Delivers superior video quality for enhanced surveillance
- 13.70 mm maximum focal length for precise identification and efficient object tracking
- f/1 maximum aperture enhances light absorption for reliable, high-quality imaging
- Fixed lens design optimizes light level adjustments through exposure or gain control
- AC power supply ensures optimal energy efficiency and improved surveillance performance
- Day/Night capability for dependable functionality in varying lighting conditions
- Wired connectivity technology ensures outstanding performance for maximum operational effectiveness
