Description

Overview

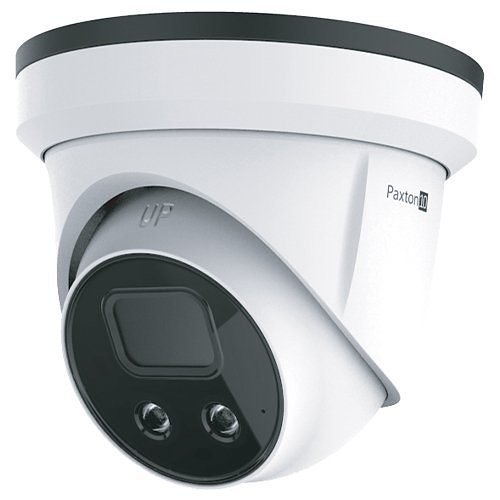

Integrated with cutting-edge video management software, the Paxton10 Turret Camera Pro is designed to adapt to various environments in the security industry. Its innovative ball and socket design allows for 360-degree rotation once the base is mounted, enabling coverage of multiple directions with just one camera. Video footage is saved on the camera’s built-in SD card and can be additionally stored on an external network drive.

Utilize the Paxton10 Video Storage Calculator to estimate the necessary storage capacity per camera within your Paxton10 surveillance system.

Installation
Paxton10 Cameras feature advanced technology and proprietary video management software, simplifying setup by eliminating manual configuration. These cameras connect directly to the network and are powered via TCP/IP, becoming instantly detectable in the Paxton10 Software under the devices menu. Simply add and label the camera as desired—no additional configuration is needed.

Features
Paxton10 Cameras come equipped with various advanced video management capabilities, including:

  • ‘Live View’ and access to recorded footage
  • Video exporting
  • High-speed scrubbing
  • Bookmarking of footage
  • Smart search functionality
  • Motion detection features
  • and more…
Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)

General Information
Brand NamePaxton
ManufacturerPaxton Access Ltd.
Manufacturer Part Number010-480-US
Product LinePaxton10
Product Model010-480-US
Product NamePaxton10 Turret Camera - PRO Series
Product SeriesPro
Product TypeNetwork Camera

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
FeaturesBuilt-in Card Reader, Day/Night, Motion Detection, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof, Weather Resistant
Form FactorTurret
Height6.1"
Weight (Approximate)1.63 lb

Power Description
Input Voltage12V DC

Product Information
Diameter5.4"
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHorizontal field of view: 102° Vertical field of view: 55° Diagonal field of view: 120°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate20 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Video Signal FormatNTSC, PAL

Warranty
Limited Warranty5 Year
