Description

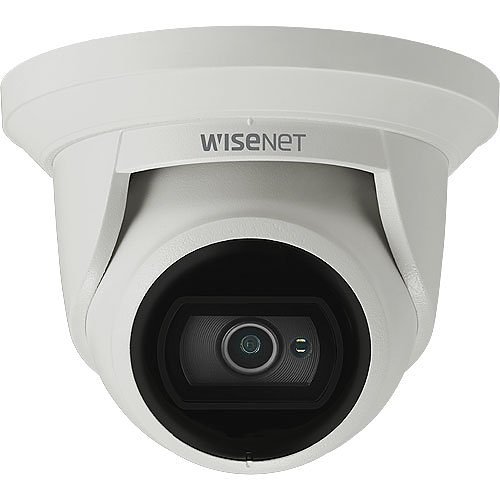

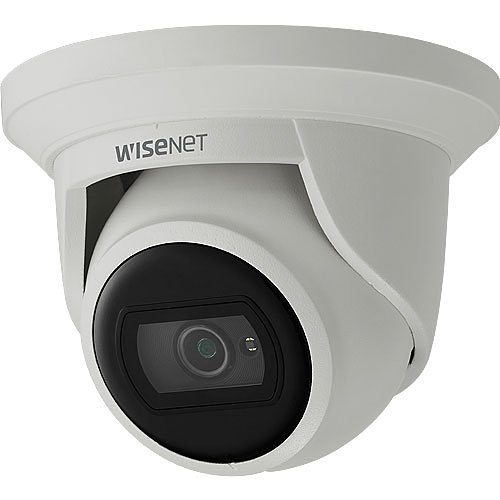

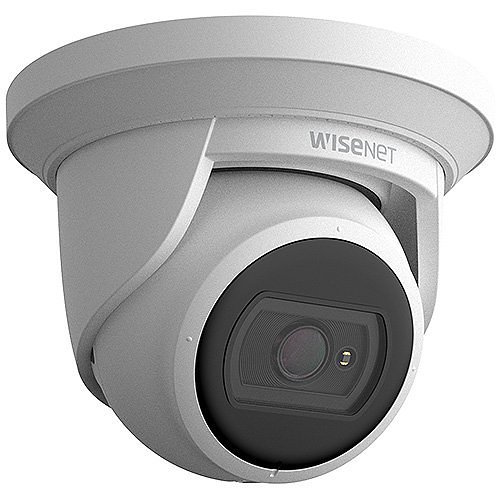

The Hanwha ANE-L6012R is an ideal choice for businesses and homeowners looking to implement a professional IP surveillance system. Equipped with a 3mm fixed lens and 1080p resolution, this camera provides a wide field of view. Designed for versatile deployment, it boasts IP67 and IK10 ratings, making it resistant to harsh weather and impacts. The built-in IR LEDs enable nighttime viewing up to 65 feet in complete darkness, making it perfect for monitoring entrances or warehouse loading areas. Its pan, tilt, and rotate functionality maximizes coverage with fewer cameras.

Installation is a breeze thanks to Power over Ethernet (PoE) capabilities and a unique QR code for easy connection. For optimal performance, pair it with Hanwha A-Series NVRs for seamless compatibility, a wide range of configurable events, remote viewing, and more. The ANE-L6012R flateye camera is a durable and feature-rich IP video security solution, offering cost-effective surveillance for nearly any environment.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberANE-L6012R
Product ModelANE-L6012R
Product Name2MP Super-Compact IR Flateye Camera
Product TypeFlateye Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3 mm
Lens IncludedYes
Maximum Focal Length3 mm

Miscellaneous
Features,, 2 MP (1920 x 1080) resolution, 30fps at all resolutions (H.265/H.264), Built-in 3mm fixed lens, Day and Night (ICR), WDR (120dB), H.265/H.264, MJPEG codec supported, Multiple streaming, Hallway View, WiseStream II support, IR viewable length 20m, Micro SD/SDHC memory slot (Max. 32GB), PoE, support, Virtual Line Crossing/Directional Detection, Enter/Exit, Tampering, Motion detection
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorFlateye
Product ColorWhite
Weight (Approximate)1.39 lb

Product Information
Diameter4.92"
Mount TypeBackbox Mount, Ceiling Mount, Conduit Mount, Flush Mount, Gang Box Mount, Pendant Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 107.7°, V: 59.0°, D: 126.7°
HD RecordingYes
Lens TypeFixed Focus
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length3 mm
Night VisionYes
Night Vision TypeInfrared
