Description

**Summary**

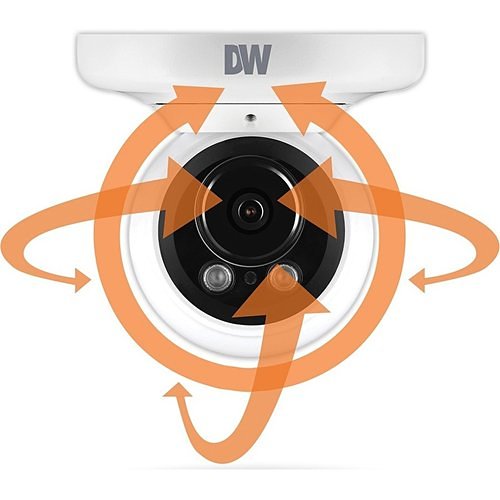

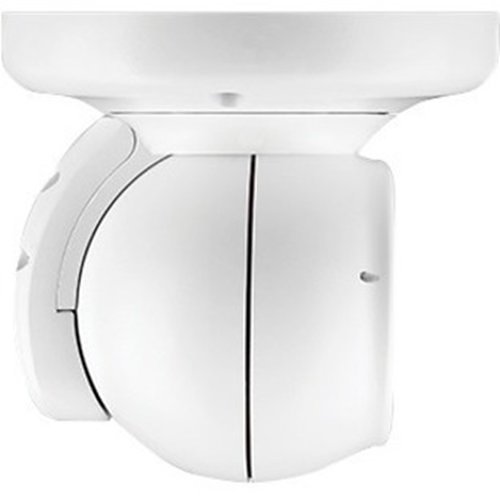

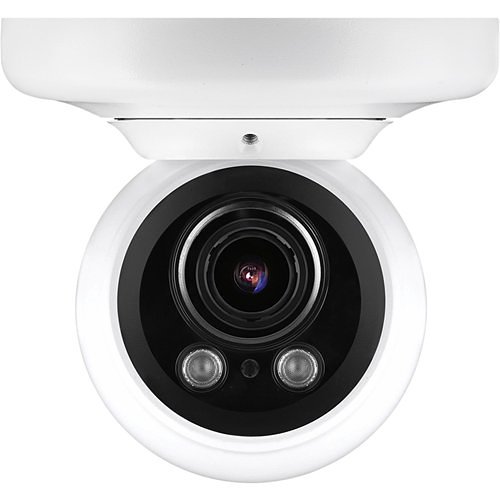

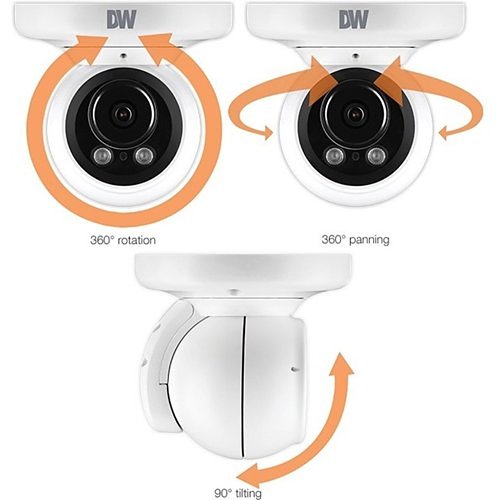

This MEGApix® IVA+™ IP camera is designed to offer advanced video analytics capabilities. It is compliant with NDAA/TAA standards and delivers a 2.1MP/1080p resolution at real-time 30fps. Equipped with a robust engine, these cameras can detect and classify people, vehicles, and objects in real-time, with support for logical rules. The camera features a 2.8mm fixed lens, supports simultaneous H.265/H.264/MJPEG codecs, and includes Star-Light Plus™ technology for capturing quality video in near-total darkness. The weather-resistant vandal ball design boasts an IP67 rating, eliminates IR reflections, and allows easy angle adjustment for superior image quality. Additionally, all MEGApix® cameras are ONVIF conformant, ensuring seamless integration with any open platform solution available.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MPVA2WI28T
Product LineMEGApix
Product ModelDWC-MPVA2WI28T
Product NameVandal Ball IP Camera with 2.8mm Fixed Lens, Color in Near-Total Darkness and IR
Product SeriesVA
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Cross Line Detection, Day/Night, Digital Noise Reduction, Enter/Exit Detector, Motion Detection, Tamper Detection, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorBall
Weight (Approximate)1.76 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHFOV / VFOV 110° / 59°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm

Warranty
Limited Warranty5 Year
