Description

**Overview**

Experience advanced surveillance capabilities with this MEGApix® IVA+™ IP camera, equipped with cutting-edge video analytics functionality. It boasts 5MP resolution at 30fps real-time streaming and complies with NDAA/TAA standards. Designed to effectively detect and classify people, vehicles, and objects through sophisticated analytics, this camera supports logical rule settings for enhanced monitoring. Its Star-Light Plus™ technology ensures vivid color video even in low-light conditions, while offering support for H.265/H.264/MJPEG codecs. Equipped with a 2.8mm fixed lens, this rugged IP67-rated, weather-resistant vandal ball camera allows for 90° tilt and 360° rotation, minimizing IR reflection and enabling flexible adjustments for superior image quality. As an ONVIF conformance-certified device, it guarantees seamless integration with any open platform solution available in the market.

**Key Features**

– 5MP 1/2.8″ image sensor delivering 30fps real-time videos
– Advanced Star-Light Plus™ technology for exceptional color in near-total darkness
– Intelligent Video Analytics (IVA+) for enhanced detection and classification
– Integrated control of IVA rules with DW Spectrum® IPVMS
– High-performance 2.8mm fixed lens
– True Wide Dynamic Range (WDR) for optimal image clarity
– Triple codec support (H.265, H.264, MJPEG) with simultaneous streaming
– 100′ Smart IR™ with precise camera synchronization

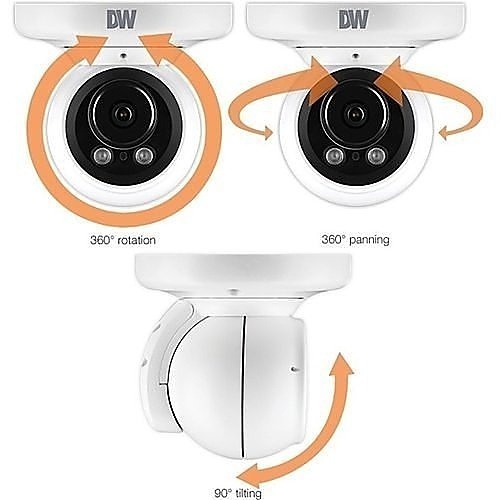

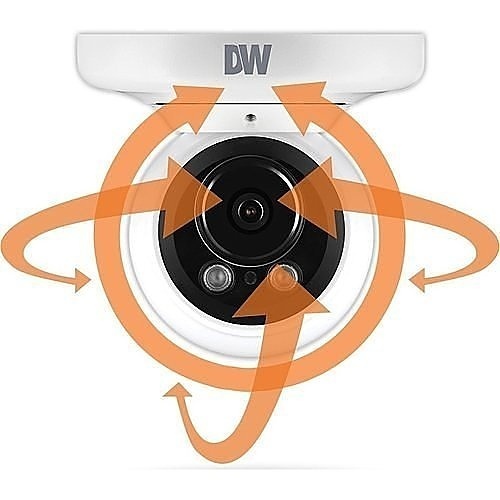

– Vandal ball design minimizes IR reflection and allows 90° tilting and 360° rotation
– Smart DNR™ 3D digital noise reduction for clear imaging
– True day/night functionality with mechanical IR cut filter
– Customizable programmable privacy zones
– Features auto gain control (AGC) and auto white balance (AWB)
– Motion detection capability
– Built-in web server for remote management
– PoE class 3 and DC12V power options
– UL-listed, meeting safety standards
– NDAA/TAA compliant for secure operations
– Dust-tight, waterproof protection (IP67-rated) up to 3 feet
– IK 10-rated for high impact resistance
– Backed by a 5-year warranty

This offers security professionals a versatile and robust solution for various surveillance environments with an emphasis on reliability and technological advancement.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MPVA5WI28T
Product LineMEGApix
Product ModelDWC-MPVA5WI28T
Product Name5MP Color In Near-Total Darkness Vandal Ball IP Camera With IVA+
Product SeriesVA
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Auto Gain Control, Back Light Compensation (BLC), Cross Line Detection, Day/Night, HTTPS Encryption, Motion Detection, Privacy Masking
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form FactorBall
Weight (Approximate)1.76 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View103° / 78°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.8
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm

Warranty
Limited Warranty5 Year
