Description

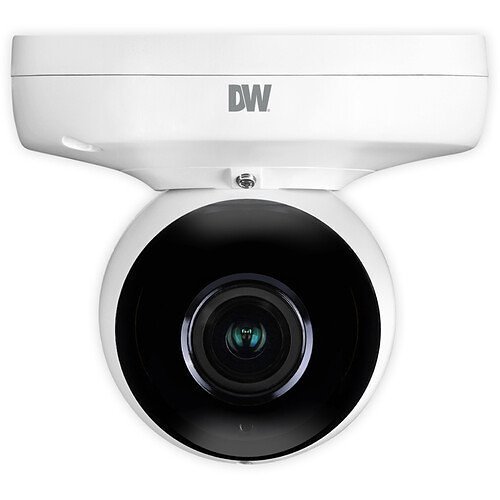

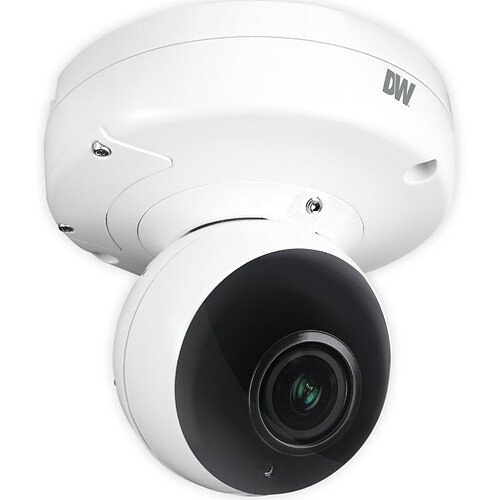

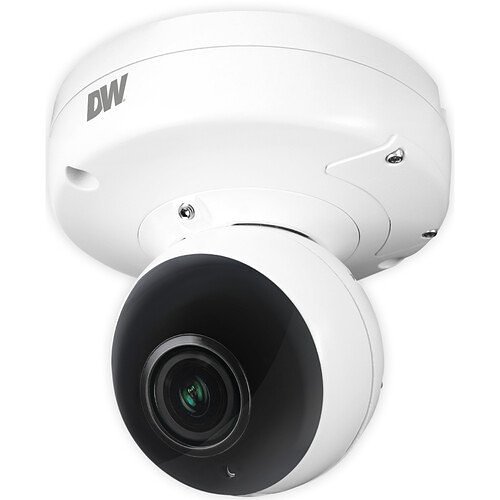

This high-performance MEGApix® IVA™ Galaxy IP camera is your gateway to advanced video surveillance solutions, equipped with robust video analytics capabilities. Fully NDAA compliant, it delivers stunning 4K resolution at a smooth 30fps. The MEGApix IVA series boasts a powerful analytics engine capable of detecting and classifying individuals and vehicles in real-time. With an optional IVA+ license upgrade, users can access enhanced Video Content Analysis (VCA) detection features. The camera employs Star-Light Plus™ technology, providing superior color video quality even in near-total darkness, and supports simultaneous H.265/H.264/MJPEG codecs. Its 2.8mm fixed lens is designed for consistent focus and coverage. Built to withstand harsh conditions, the Galaxy weather-resistant vandal ball cameras are IP66-rated and engineered to prevent IR reflections. They offer effortless angle adjustment for optimal imaging and convenient access to the control board directly from the camera base. As ONVIF conformant devices, MEGApix cameras seamlessly integrate with any open platform solution available in the market.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MPVD8WI28TW
Product LineMEGApix
Product ModelDWC-MPVD8WI28TW
Product Name4K Color in Near-total Darkness Vandal Ball IP Camera with IVA+ DWC-MPVD8Wi28TW
Product SeriesMVD8
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesAudio Compression, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Mirror, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK09

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form FactorBall
Weight (Approximate)1.87 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeBracket Mount, Ceiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHFoV / VFoV 105.5° / 56.3°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.0
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty5 Year
