Description

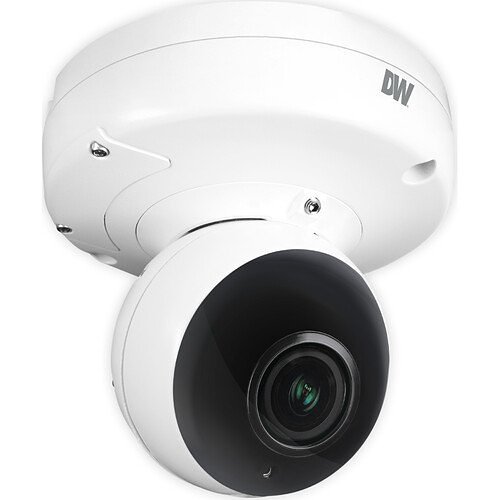

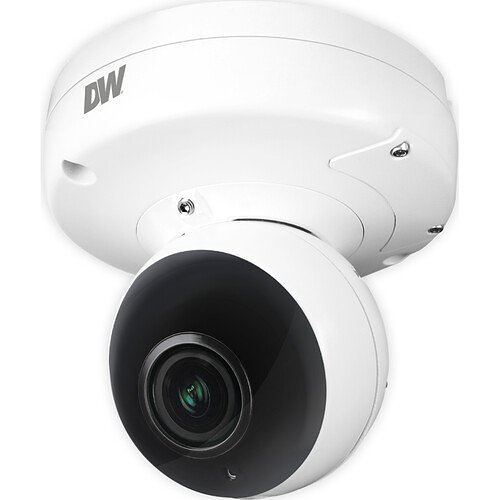

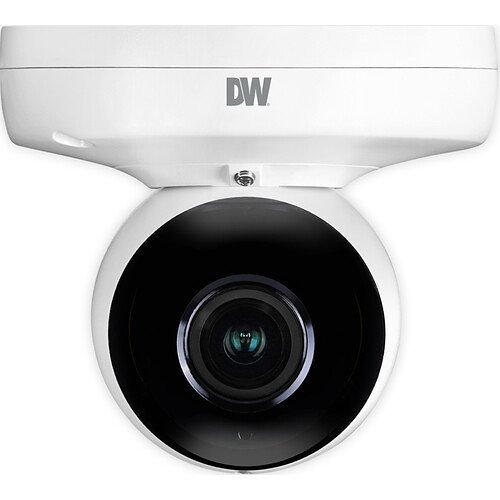

This Galaxy IP Camera with integrated Intelligent Video Analytics (IVA) features offers robust video surveillance capabilities. It is compliant with the National Defense Authorization Act (NDAA) and delivers stunning 4K resolution at real-time 30 frames per second (fps). The IVA empowers real-time detection and classification of people, vehicles, and objects, with logical rule support. Equipped with Star-Light Plus™ technology, this camera provides vibrant color video even in near-total darkness. It supports H.265, H.264, and MJPEG codecs simultaneously, and features a 2.7~13.5mm vari-focal auto-focus lens with motorized 5x optical zoom. The IP66-rated vandal-proof design prevents IR reflections and allows easy angle adjustments for optimal image clarity, with direct access to the control board from the camera’s base. ONVIF compliance ensures seamless integration with open platform solutions.

**Key Features:**
– 4K 1/2.8″ image sensor captures video at 30fps
– Star-Light Plus™ technology for color images in nearly complete darkness
– Enhanced Intelligent Video Analytics (IVA+)
– Compatible and easy control of IVA rules with popular VMS platforms
– Reduction of false alarms
– Efficient storage management with logic rules and smart recording
– 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
– True Wide Dynamic Range (WDR) for balanced lighting
– Triple streaming with H.265, H.264, and MJPEG codecs
– 100′ Smart IR™ with intelligent synchronization
– Durable vandal-resistant housing
– Advanced 3D digital noise reduction
– True day/night function with IR cut filter
– Customizable privacy zones
– Auto gain control (AGC), backlight compensation (BLC), auto white balance (AWB)
– Motion detection capabilities
– Support for two-way audio communication
– Micro SD/SDHC/SDXC card slot for local recording (card not included)
– Alarm sensor input and relay output
– Integrated web server for easy management
– Power over Ethernet (PoE class 3) and DC12V power options
– ONVIF compliance for profile S
– NDAA compliant housing
– IP66-rated for protection against dust and water
– IK9-rated for impact resistance
– Backed by a 5-year warranty

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MPVD8WIATW
Product LineMEGApix
Product ModelDWC-MPVD8WIATW
Product Name4K Color in Near-Total Darkness Vandal Ball IP Camera with IVA+
Product SeriesMVD8
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK09
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form FactorBall
Weight (Approximate)1.87 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeBracket Mount, Ceiling Mount, Corner Mount, Junction Box Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View33.1°~90.3°, 18.9°~49°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom5x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty5 Year
