Description

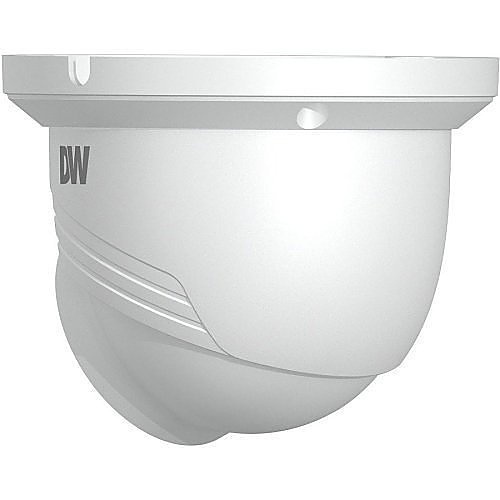

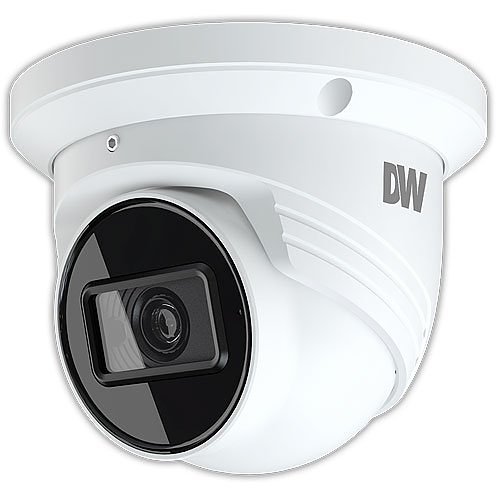

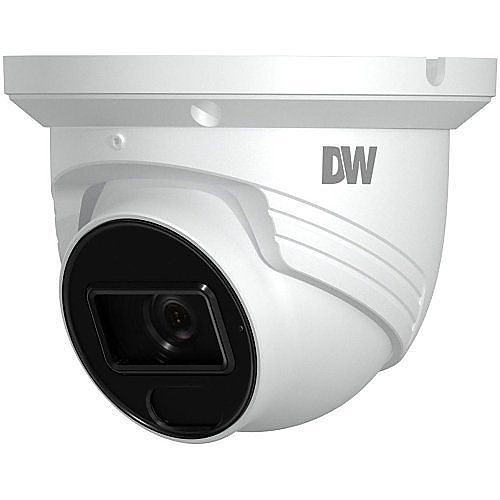

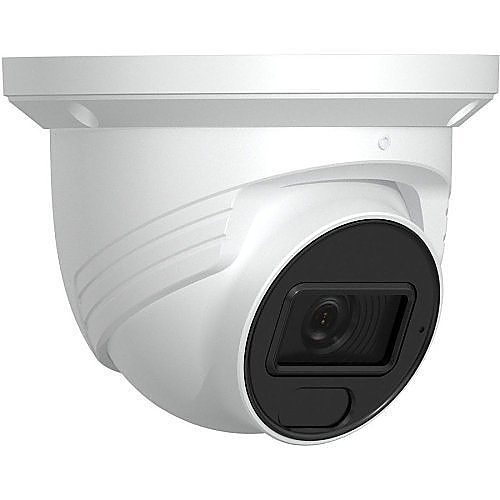

These MEGApix® IP cameras are designed to comply with NDAA standards, providing crystal-clear video quality at a 5MP resolution with a real-time frame rate of 30fps. The IP67-rated turret camera offers fixed lens options of 2.8mm and 3.6mm and includes a 360° camera gimbal for comprehensive view adjustment. Advanced analytics features encompass line crossing detection, perimeter intrusion alerts, video tampering detection, and object classification capabilities. All MEGApix cameras adhere to ONVIF standards, ensuring seamless integration with any open platform solution in the security industry.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MT95WI28TW
Product LineMEGApix
Product ModelDWC-MT95WI28TW
Product NameMEGApix DWC-MT95WI28TW Network Camera
Product SeriesMT95
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Built-in Web Server, Cross Line Detection, Defog, Motion Detection, SD Card Local Storage
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Others
ADI Part Number Replaces6K-MT94WI28T, 6K-MT94WI36T
Model Number ReplacesDWC-MT94WI28T, DWC-MT94WI36T

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Waterproof
Form FactorTurrett
Weight (Approximate)1.01 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewField of view (FoV) 98.5°
HD RecordingYes
Lens TypeFixed
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty5 Years
