Description

Line Crossing Detection

When a designated virtual line is breached from any direction within the surveillance system, an alert is promptly initiated.

Perimeter Intrusion Detection

Once a specific boundary is established, any movement into, out of, or across this zone triggers an immediate security alarm.

Video Tampering Detection – Abnormal Color Analysis

If there’s an alteration in the camera’s color display, a notification of tampering is automatically generated.

Video Tampering Detection – Scene Alteration

Upon detecting a change in the camera’s position that affects the Field of View (FoV), a tampering alert is dispatched.

Video Tampering Detection – Video Blur

A sudden blurring or reduced visibility in the video feed triggers an instant notification of tampering.

Smart IR Technology

Smart IR technology dynamically adjusts infrared illumination to prevent overexposure on nearby objects, ensuring sharp black-and-white images without compromising detail.

True Wide Dynamic Range (WDR) Technology

Equipped with advanced sensors, cameras featuring True Wide Dynamic Range (WDR) technology balance varied lighting conditions to capture clear images with both shadow and highlight details.

H.265 Video Codec Support

This High-Efficiency Video Coding (HEVC) standard provides 25% to 50% improved data compression efficiency while preserving video quality.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1440

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/2 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-VSTB04BI
Product LineMEGApix
Product ModelDWC-VSTB04Bi

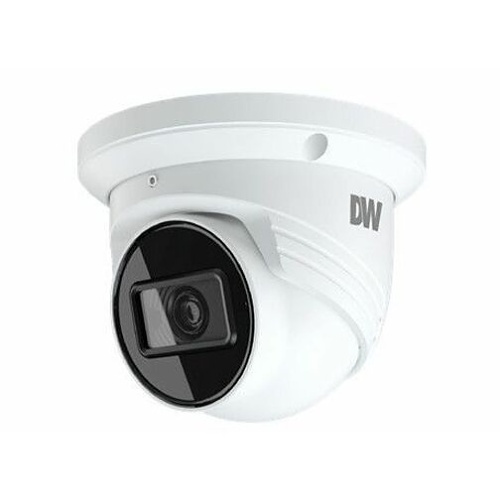

Product NameMEGApix 4MP turret IP camera with fixed lens and IR
Product SeriesV-Class
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.80 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Defog, Dual Stream, Dynamic Noise Reduction, Privacy Masking, Video Content Analytics, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof, Weather Resistant
Form FactorTurrett
Product ColorWhite
Weight (Approximate)1.01 lb

Power Description
Input Voltage12V DC

Product Information

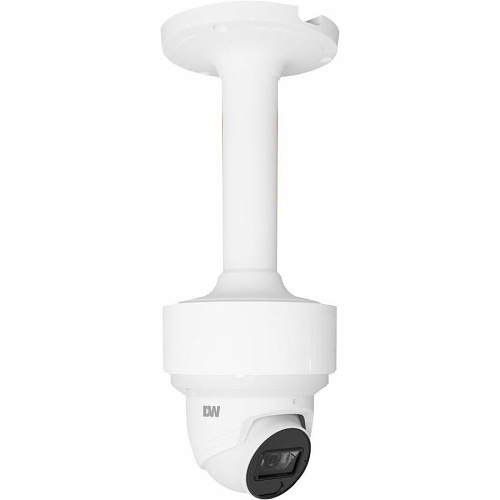

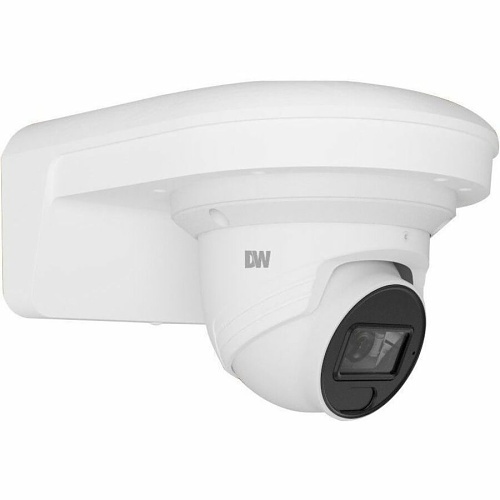

Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Recording Formats2K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewHorizontal Field of View (HFOV) 94°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty5 Year
