Description

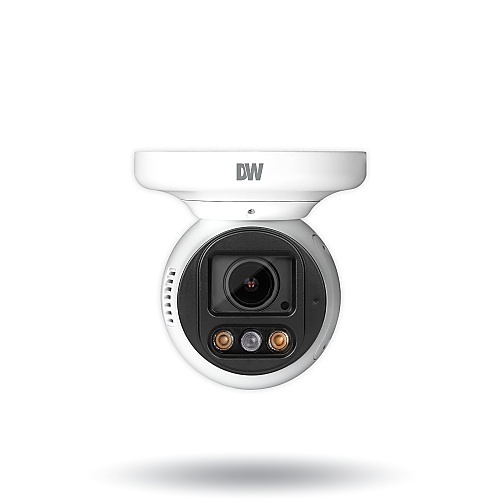

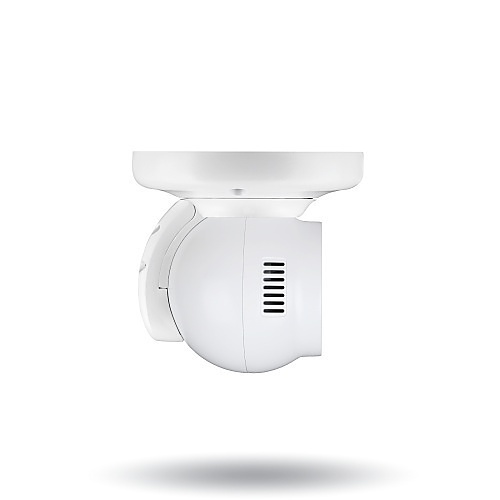

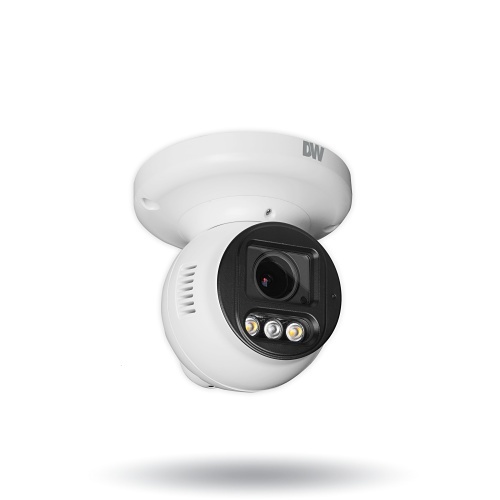

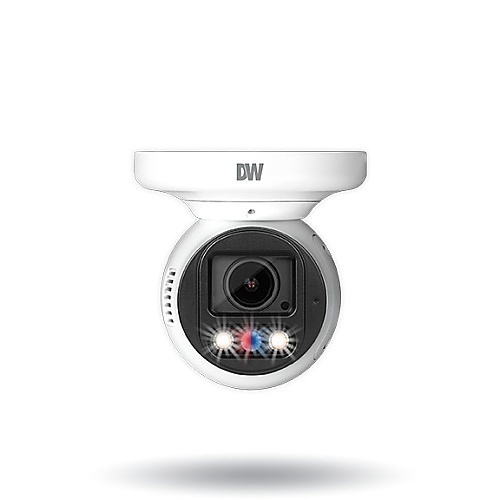

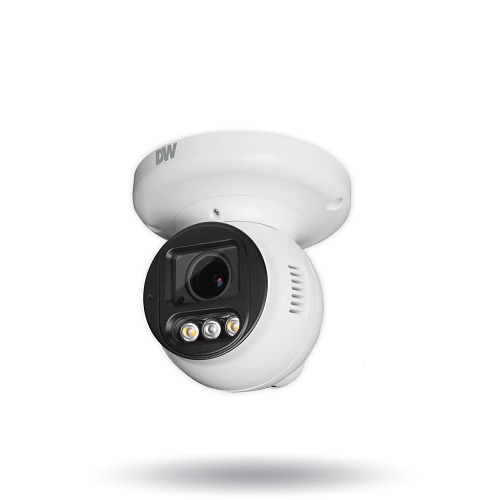

This NDAA/TAA-compliant turret IP camera offers advanced features, delivering 5MP resolution at 30 frames per second with a 90ft white light range. Equipped with red/blue flashing LEDs and an integrated edge AI engine, it harnesses the power of AI deep learning, enabling precise object detection and people tracking. Designed with Star-Light Plus™ technology, it provides color imaging in near-total darkness. The camera includes a built-in microphone and speaker, housed in a robust IP67-rated, IK10-rated enclosure.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantYes

Display & Graphics
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F
Operating Humidity10-90 %

Exposure
Longest Shutter Speed1/15 s
Minimum Illumination0.03 lux
Shortest Shutter Speed1/32000 s

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-XSTD05MF
Product LineMEGApix Ai
Product ModelDWC-XSTD05MF
Product NameMEGApix Ai 5MP vandal ball turret IP camera with vari-focal lens and white light LEDs
Product TypeNetwork Camera

Interfaces/Ports
HDMINo

Lens
Focal Length2.7-12 mm
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
Environmentally FriendlyYes
Impact Protection RatingIK10

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Height4.8"
Weight (Approximate)1.94 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Technical Information
Effective Camera Resolution5MP
Field of ViewHorizontal: 31.5° to 89.9° Vertical: 23.6° to 64.5°
HD RecordingNo
Lens TypeVarifocal
Maximum Aperturef/1.3
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Night VisionYes

Video
Horizontal Resolution2592

Warranty
Limited Warranty5 Year
