Description

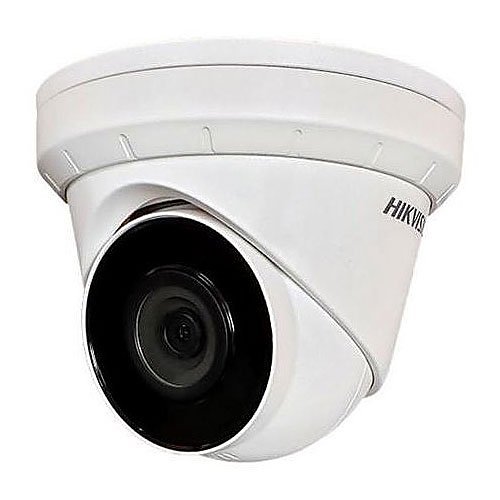

The Hikvision ECI-T24Fx Outdoor IR Turret Camera delivers high-definition IP output with advanced H.265+ video compression technology, ensuring optimized bandwidth and storage efficiency. Featuring infrared (IR) technology, it supports visibility up to 100 feet (30 meters) even in low-light conditions.

– Minimum Illumination: Color sensitivity at 0.15 lux (f/2.0, AGC on); 0.03 lux (f/2.0, AGC on), and 0 lux with IR
– High resolution up to 2560 x 1440
– Available with fixed lens options of 2.8 mm, 4 mm, and 6 mm
– Compatible with multiple video encoding formats including H.265+, H.265, H.264+, H.264, and MJPEG
– Supports main stream frame rates of 20 fps at 2560 × 1440 and 30 fps at 2304 × 1296, 1920 × 1080, and 1280 × 720
– IR range extends up to 100 ft (30 m) with 120dB True WDR for enhanced clarity
– Operates on 12 VDC ± 25% (PoE IEEE802.3af) with a maximum power consumption of 6.5 W and features a robust metal housing.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1440

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberECI-T24F4
Product LineValue Express
Product ModelECI-T24F4
Product Name4 MP Outdoor IR Network Turret Camera
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4 mm
Lens IncludedYes
Maximum Focal Length4 mm

Miscellaneous
Features3D Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), Motion Detection, Password Protection, Privacy Masking
Indoor/OutdoorOutdoor
Package Contents 4 MP Outdoor IR Network Turret Camera Quick Start Guide Screws Watertight Cable Connector

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyClear
DurabilityDustproof, Waterproof, Weather Resistant
Form FactorTurret
Height3.7"
Product ColorClear
Weight (Approximate)12.80 oz

Power Description
Input Voltage12V DC

Product Information
Diameter4.3"
Mount TypeConduit Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewHorizontal FOV 77°, Vertical FOV 42°, Diagonal FOV: 90°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate30 fps
Minimum Focal Length4 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Year
