Description

WizSense Series devices seamlessly integrate Dahua’s advanced Analytics+ with a user-friendly interface, employing industry-leading AI-driven Smart Motion Detection+ and Perimeter Protection capabilities. These tools expertly filter human and vehicle images from irrelevant footage, enhancing security and reducing false alarms for small to medium-sized enterprises at a highly competitive price point.

**System Overview**

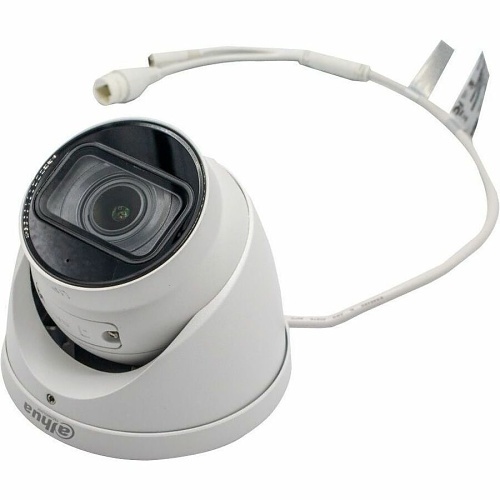

The Dahua 5MP Enhanced Starlight Network Eyeball Camera (Vari-focal) caters to a multitude of security applications, featuring Smart Motion Detection+ that enhances detection accuracy for Tripwire and Intrusion alerts. Equipped with Enhanced Starlight technology, True Wide Dynamic Range, and IR illumination, this camera performs optimally under any lighting conditions. Its IP67 rating ensures robust video capture, even in the toughest environments.

**Functions**

**Perimeter Protection**
Leveraging Dahua’s Analytics+, the Tripwire and Intrusion functions allow for tailored tripwires based on specific object types, facilitating automation in restricted areas. This perimeter protection technology requires fewer pixels for object detection, heightening accuracy and significantly lowering false alarms triggered by lighting, weather, or wildlife.

**Smart Motion Detection+**
Dahua’s Analytics+ powered Smart Motion Detection+ improves alarm precision by focusing on human and vehicle movements, filtering non-threatening motions from trees, animals, or weather, ensuring only relevant alarms are activated.

**AI Scene Self-adaptation (AI SSA)**
AI SSA employs deep learning to assess environmental factors such as rain, fog, backlighting, and low light conditions, dynamically adjusting image parameters for optimal clarity under varying conditions.

**Enhanced Starlight Technology**
Dahua’s Starlight Ultra-low Light Technology excels in low-light scenarios, providing exceptional light sensitivity that captures vivid color details in environments with minimal lighting. This technology employs optical strategies to evenly distribute light across scenes, delivering high-quality images in dark settings.

**Smart H.265+**
Smart H.265+ represents a refined adaptation of the H.265 codec, incorporating a scene-adaptive encoding strategy, dynamic GOP and ROI, flexible multi-frame reference structures, and intelligent noise reduction. This results in superior video quality while significantly lowering network strain and cutting storage and bit rate demands by up to 70% compared to traditional H.265 compression.

**Cybersecurity**
Dahua network cameras are fortified with essential cybersecurity features, including robust security authentication, access control, trusted protection, encrypted transmission, and storage encryption. These features enhance the camera’s resilience against unauthorized access and data breaches.

**Environmental Durability**
Designed for extreme outdoor conditions, this camera is rigorously tested for dust and water resistance, meeting the IP67 Ingress Protection standard. It accommodates a wide voltage range with a 30% input voltage tolerance, suitable for external environments prone to power fluctuations.

Camera
Image Sensor TypeCMOS
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2960 x 1668

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberN53CJ6Z
Product LineWizSense
Product ModelN53CJ6Z
Product Name5MP Enhanced Starlight Network Eyeball Camera (Vari-focal)
Product SeriesWizSense Series
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.50 mm

Miscellaneous
Country of OriginCN
Features3D Noise Reduction, Audio Compression, Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Digital Watermark, Face Detection, Highlight Compensation (HLC), Mirror, Motion Detection, Privacy Masking, PTZ, Region of Interest, SD Card Local Storage, Wide Dynamic Range
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesVD-N53AJ5Z
Model Number ReplacesN53AJ5Z

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Waterproof
Form FactorEyeball
Product ColorWhite
Weight (Approximate)1.57 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal: 99° to 28°/Vertical: 71° to 21°/Diagonal: 134° to 35°
HD RecordingYes
Lens Mount TypeM14
Lens TypeVarifocal
Maximum Aperturef/1.5
Maximum Frame Rate30 fps
Minimum Focal Length2.70 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs2
Optical Zoom5x
Video FormatsH.264, H.264B, H.264H, H.265, MJPEG, Smart H.264+, Smart H.265+
