Description

Leveraging advanced deep learning algorithms, Hikvision’s AcuSense technology enhances security by enabling human and vehicle target classification alarms on both front-end and back-end security devices. This innovative system significantly minimizes false alarms triggered by non-human or non-vehicle objects, thereby vastly increasing the efficiency and effectiveness of security alerts.

– 5 MP resolution delivering high-quality imaging
– Superior low-light performance powered by DarkFighter technology
– Lens specifications: 2.8 mm, with horizontal FOV of 97°, vertical FOV of 71°, and diagonal FOV of 129°
– Utilizes efficient H.265+ compression technology
– Human and vehicle target classification based on deep learning for false alarm reduction
– Infrared range capable of reaching up to 131 feet (40 meters)
– Robust water and dust resistance rated at IP67

Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberPCI-T15F2S
Product LineAcuSense
Product ModelPCI-T15F2S

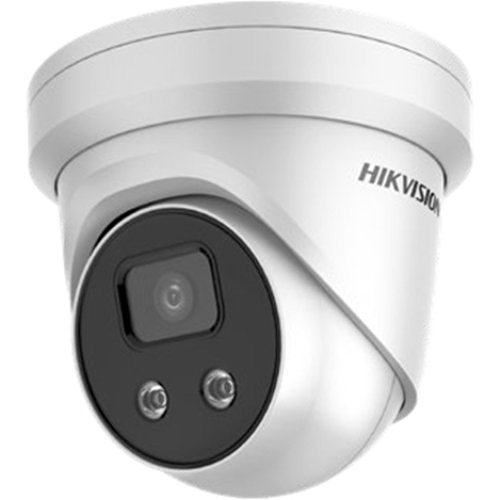

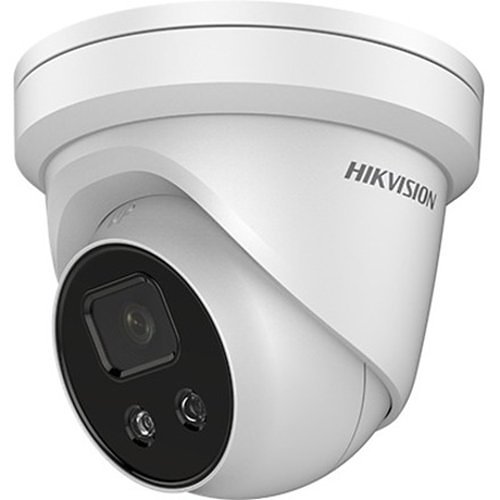

Product NameAcuSense 5 MP IR Fixed Turret Network Camera
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationREACH, RoHS, WEEE
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Built-in HLC, Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Tampering Alarm
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesHX-TR2345F2
Model Number ReplacesDS-2CD2345FWD-I 2.8MM

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Waterproof
Form FactorTurret
Height5"
Product ColorWhite
Weight (Approximate)1.70 lb

Power Description
Input Voltage12V DC

Product Information
Diameter5.4"
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of Viewhorizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Year
