Brand: Altronix

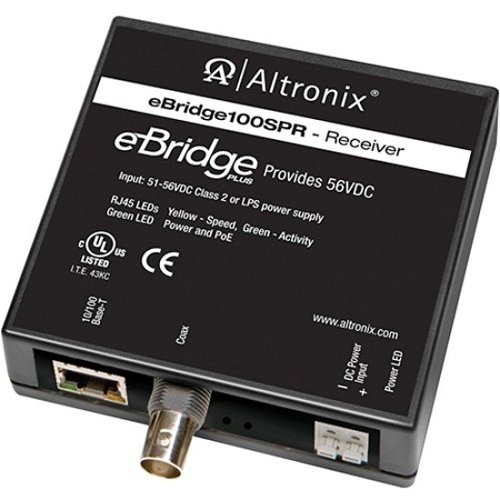

Altronix EBRIDGE100SPR EoC Single Port Receiver, 100Mbps, Generates PoE/PoE+/Hi-PoE 60W, 51/56VDC, Used with EBRIDGE200WPM or EBRIDGE4SPT (Replaces EBRIDGE1SPR)

Name: Altronix EBRIDGE100SPR EoC Single Port Receiver, 100Mbps, Generates PoE/PoE+/Hi-PoE 60W, 51/56VDC, Used with EBRIDGE200WPM or EBRIDGE4SPT (Replaces EBRIDGE1SPR)
Brand: Altronix
SKU: EBRIDGE100SPR
Availability: InStock

in stock

Special Order

$167.11

Ethernet over coaxial cable/CAT5e Receiver compatible with eBridge200WPM.
Capable of transmitting IP video and data over coaxial cables up to 300 meters or CAT5e cables up to 500 meters.
Provides 100 Mbps full duplex communication.
Compatible with Power over Ethernet (PoE) standard IEEE 802.3af and PoE+ standard IEEE 802.3at.
Certified by UL/cUL and CE standards.

SKU: EBRIDGE100SPR Categories: Media Converters, Networking Devices, Video Surveillance Brand: Altronix

Description

The eBridge100SPR is a solution that facilitates data transmission and power delivery over coaxial cable to the eBridge200WPM 2-port Outdoor Transceiver. This Power over Coax (PoC) technology supports data and power transfer up to 300 meters. The total maximum distance between the central hub and the PoE camera or device can reach 500 meters, allowing for up to 100 meters of structured cabling on either end. Integrated IP management enables remote reset, monitoring, and reporting of cameras through various IP protocols. This model serves as an upgrade to the previous eBridge1SPR version.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	EBRIDGE100SPR
Product Condition	New
Product Line	eBridge
Product Model	eBridge100SPR
Product Name	eBridge100SPR Ethernet over Coax Receiver
Product Type	Transceiver/Media Converter

Interfaces/Ports
DVI	No
LC Port Type	Duplex
Management Port	No
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
SC Port Type	Duplex
Total Number of Ports	1
USB	No

Media & Performance
Maximum Distance Supported	984.25'
Network Technology	100Base-TX

Miscellaneous
Environmental Certification	UL
Environmentally Friendly	Yes

Network & Communication
Ethernet Technology	Fast Ethernet

Physical Characteristics
Depth	4.4"
Form Factor	Surface Mount
Height	1"
Weight (Approximate)	5.10 oz
Width	3.5"

Power Description
Power Source	AC Adapter

Technical Information
Media Type Supported	Twisted Pair
Power Consumption	60W

Warranty
Limited Warranty	Lifetime
