Brand: Altronix

Altronix EBRIDGE1PCRTX EoC Single-Port Adapter Kit, 25Mbps, Generates PoE/PoE+, Receiver Requires 24/56VDC, Includes Receiver and Transceiver

Name: Altronix EBRIDGE1PCRTX EoC Single-Port Adapter Kit, 25Mbps, Generates PoE/PoE+, Receiver Requires 24/56VDC, Includes Receiver and Transceiver
Brand: Altronix
SKU: EBRIDGE1PCRTX
Availability: InStock

in stock

Special Order

$276.79

- Complies with IEEE 802.3af (15W) and IEEE 802.3at (30W) standards.
- Achieves a data transfer rate of 25 Mbps over distances up to 500 meters.
- Reduces expenses and labor involved in deploying new networking infrastructure.
- Adapts digital IP cameras within an existing analog CCTV framework.
- Features automatic detection and protection for legacy non-PoE cameras and devices.
- Compatible with Megapixel, HD720, HD1080, and VGA (SD) cameras.
- Extends network link distances suitable for industrial environments.
- Converts existing CCTV coax infrastructure to digital networks for industries like retail, casinos, airports, schools, hospitals, and more.
- Certified by UL standards in the U.S. and Canada.
- CE certified for compliance with European standards.

SKU: EBRIDGE1PCRTX Categories: Media Converters, Networking Devices, Video Surveillance Brand: Altronix

Description

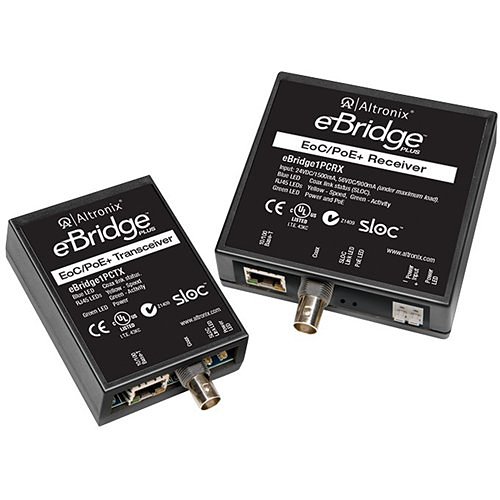

IP video transmission solution with Ethernet/PoE and PoE+ capabilities over coaxial cable. This kit supports data and power delivery for IP video systems over coaxial distances up to 1,500 feet. It includes one eBridge1PCRX receiver and one eBridge1PCTX transceiver. The components are UL/cUL Listed (UL60950-1) and CE Certified for safety and compliance.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	EBRIDGE1PCRTX
Packaged Quantity	1
Product Line	eBridge
Product Model	eBridge1PCRTX
Product Name	eBridge1PCRTX Transceiver/Media Converter
Product Type	Transceiver/Media Converter

Interfaces/Ports
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Total Number of Ports	1

Media & Performance
Maximum Distance Supported	1640.42 ft
Network Technology	10/100Base-T

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes
Package Contents	eBridge1PCRTX Transceiver/Media Converter 1 x eBridge1PCRX EoC Single Port Receiver

Network & Communication
Ethernet Technology	Fast Ethernet

Physical Characteristics
Depth	3.8"
Height	1"
Weight (Approximate)	6.40 oz
Width	2.5"

Power Description
Power Source	DC

Technical Information
Media Type Supported	Coaxial, Twisted Pair

Warranty
Limited Warranty	Lifetime
