Brand: Altronix

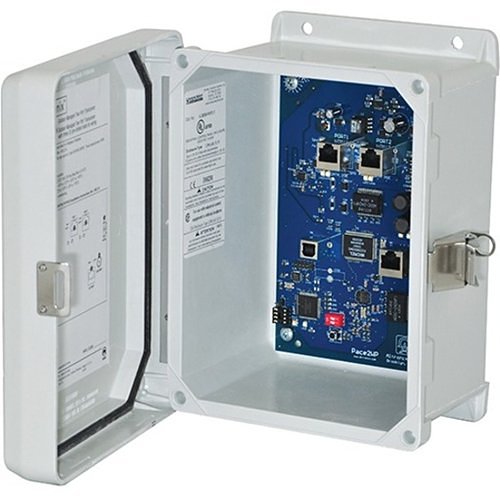

Altronix eBridge200WPM EoC or Long Range Ethernet Port Transceiver, Outdoor, Passes PoE/PoE+/Hi-PoE 60W from Receiver, Requires Compatible Receiver

Name: Altronix eBridge200WPM EoC or Long Range Ethernet Port Transceiver, Outdoor, Passes PoE/PoE+/Hi-PoE 60W from Receiver, Requires Compatible Receiver
Brand: Altronix
SKU: EBRIDGE200WPM
Availability: InStock

In Stock

Special Order

$525.56

Outdoor Dual-Port Managed Transceiver.
Delivers 2 ports with PoE+ (30W each) or 1 port with Hi-PoE (60W).
100 Mbps full-duplex network speed.
Compatible with PoE, PoE+, and Hi-PoE standards.
Certified UL/cUL and CE-approved.

SKU: EBRIDGE200WPM Categories: Media Converters, Networking Devices, Video Surveillance Brand: Altronix

Description

The eBridge200WPM PoE Ethernet transceiver and media converter facilitates the transmission of data and power over coaxial or CAT5 cables, extending coverage up to 3 to 5 times beyond standard Ethernet limitations. This solution streamlines the migration of legacy coaxial analog camera setups to IP camera systems. Capable of supporting up to two PoE or PoE+ cameras/devices, or a single Hi-PoE (60W) device, the eBridge200WPM/WPMH features integrated IP management for remote camera reset, monitoring, and reporting via various IP protocols. Additionally, there’s no requirement for remote AC mains power installation, as these devices are powered directly through low voltage PoE midspan or endspan equipment like Altronix NetWay midspans or eBridge100SPR.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	EBRIDGE200WPM
Packaged Quantity	1
Product Condition	New
Product Line	eBridge
Product Model	eBridge200WPM
Product Name	eBridge200WPM Outdoor Managed Two Port Transceiver
Product Type	Transceiver/Media Converter

Interfaces/Ports
DVI	No
LC Port Type	Duplex
Management Port	No
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Number of PoE+ (RJ-45) Ports	2
SC Port Type	Duplex
Total Number of Ports	2
USB	No

Media & Performance
Maximum Distance Supported	984.25'
Network Technology	100Base-TX

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes
Package Contents	eBridge200WPM Outdoor Managed Two Port Transceiver 2 x Wormgear Quick Release Straps

Network & Communication
Ethernet Technology	Fast Ethernet

Physical Characteristics
Depth	4.9"
Form Factor	Pole Mount
Height	9.5"
Weight (Approximate)	2.20 lb
Width	7.3"

Power Description
Power Source	PoE+

Technical Information
Media Type Supported	Twisted Pair
Power Consumption	30W\|60W

Warranty
Limited Warranty	Lifetime
