Brand: Etherwan

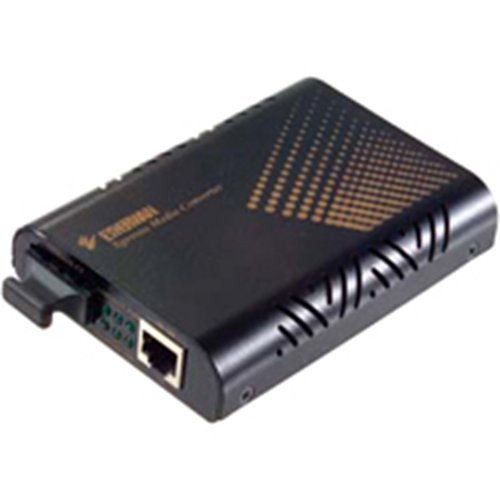

EtherWAN EL100C-20 EL100 Series Fast Ethernet to Fiber Media Converter

Name: EtherWAN EL100C-20 EL100 Series Fast Ethernet to Fiber Media Converter
Brand: Etherwan
SKU: EL100C-20
Availability: InStock

in stock

In Stock

$154.02

Link multiple network devices seamlessly or expand your network connectivity by utilizing two transceivers/media converters.
Achieve data transfer speeds of up to 100 Mbps with 10/100Base-TX technology over optical fiber cable infrastructure.
The wall-mountable design ensures easy and convenient installation.
The wall-mountable design ensures easy and convenient installation.

SKU: EL100C-20 Categories: Media Converters, Networking Devices, Video Surveillance Brand: Etherwan

Description

The Converter features one TX port and one FX port. For the FX port, it offers flexibility with options for Multi-mode fiber using SC, ST, VF-45, MT-RJ, or LC connectors, Single-mode fiber using SC or ST connectors, or WDM fiber with a single SC connector. The TX port utilizes an RJ-45 connector and automatically detects speeds of 10/100Mbps.

General Information
Brand Name	EtherWAN
Manufacturer	EtherWAN Systems, Inc
Manufacturer Part Number	EL100C-20
Product Model	EL100C-20
Product Name	EL100C-20 Media Converter
Product Series	EL100
Product Type	Transceiver/Media Converter

Interfaces/Ports
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
Total Number of Ports	2

Media & Performance
Fiber Mode Supported	Multimode, Single-mode
Fiber Optic Cable Standard	10/125 µm
Maximum Distance Supported	12.43 Mile
Network Technology	10/100Base-TX, 100Base-FX

Miscellaneous
Compatibility	EMC1600 Media Converter Chassis
Package Contents	EL100C-20 Media ConverterUser's ManualAC to DC Power Adapter

Network & Communication
Ethernet Technology	Fast Ethernet

Physical Characteristics
Depth	4.3"
Form Factor	Internal, Wall Mount
Height	0.9"
Weight (Approximate)	5.29 oz
Width	3.2"

Power Description
Power Source	DC
