in stock
In Stock
$1,307.34

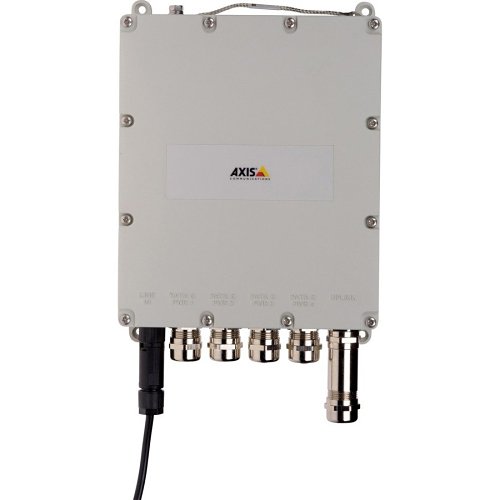

The AXIS T8504-E Outdoor PoE Switch is an ideal solution for deploying surveillance cameras in outdoor environments over extended distances, while minimizing installation expenses. Featuring an integrated SFP port, this switch is designed for seamless fiber optic installations. It offers a durable and low-maintenance network solution, and when maintenance is required, remote management capabilities simplify the process.
| Certifications | |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Axis Communications |
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 01449-001 |
| Product Line | T |
| Product Model | T8504-E |
| Product Name | T8504-E Outdoor PoE Switch |
| Product Series | T85 |
| Product Type | Ethernet Switch |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Shared SFP Slot | No |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 1 x SFP Port (Uplink), 4 x RJ45 10/100/1000Base-T Mbps (PoE Ports) |
| Stack Port | No |
| Total Number of Network Ports | 4 |
| Uplink Port | Yes |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Miscellaneous | |
| Environmental Certification | EAC, RCM, VCCI |
| Environmentally Friendly | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Layer Supported | 2 |
| Physical Characteristics | |
| Color | White |
| Depth | 5.9" |
| Height | 2.8" |
| Material | Aluminum |
| Weight (Approximate) | 6.39 lb |
| Width | 8.4" |
| Power Description | |
| Frequency | 50 Hz|60 Hz |
| Input Voltage | 100-240V AC |
| PoE Budget | 150W |
| Power Source | PoE |
| Redundant Power Supply Supported | No |
| Technical Information | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Network Switch Type | Managed |
| Power Consumption | 30-60W |
| Warranty | |
| Limited Warranty | 5 Year |
