Description

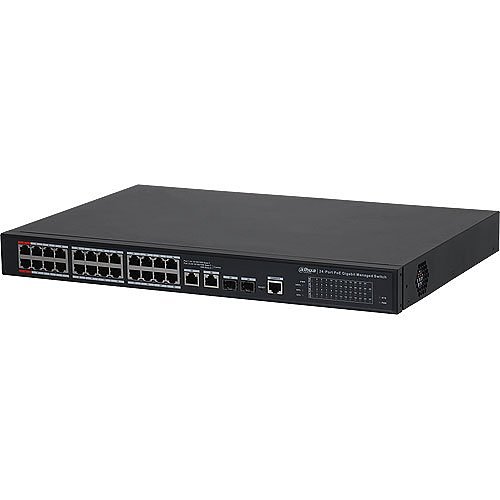

This 24-port managed desktop switch is specifically crafted for field transmission tasks and high-definition video applications. It features a high-performance switching engine, substantial buffer size, minimal transmission delay, and exemplary reliability. Along with the 24 PoE ports, this network switch includes two gigabit uplink combo ports and offers a robust PoE budget of 360 W. Its advanced network management capabilities encompass CLI, iLinksView, and web-based network management software utilizing SNMP protocols.

Supporting IEEE 802.3bt technology, this switch provides 90 W through each PoE port, facilitating high-power infrastructure for smart building systems, safe city projects, thin clients, and numerous other applications. By adopting this standard, the switch efficiently powers IT and IoT devices with escalated power demands, thereby reducing both installation and wiring expenses.

Certifications
TAA CompliantNo

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberDH-PFS4226-24ET2GF-360
Product ModelDH-PFS4226-24ET2GF-360
Product Name24-port Managed PoE Ethernet Switch
Product TypeEthernet Switch

I/O Expansions
Expansion Slot TypeSFP
Number of SFP Slots2
Number of Total Expansion Slots2

Interfaces/Ports
ModularYes
Network (RJ-45)Yes
Port/Expansion Slot Details2 x Gigabit Ethernet Uplink Combo, 24 x Fast Ethernet Network Port
Total Number of Network Ports24
Uplink PortYes

Management & Protocols
ManageableYes

Media & Performance
Network Technology10/100/1000Base-T, 1000Base-X

Miscellaneous
Country of OriginCN
Package Contents 24-port Managed PoE Ethernet Switch Rack-Mount Ears

Network & Communication
Ethernet TechnologyGigabit Ethernet
Layer Supported2
Networking StandardsIEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Others
ADI Part Number ReplacesVD-PFS422636
Model Number ReplacesDH-PFS4226-24ET-360

Physical Characteristics
Height1.7"
Product MaterialMetal
Weight (Approximate)10.19 lb
Width11.8"

Power Description
Frequency50 Hz|60 Hz
Input Voltage120V AC, 230V AC
PoE (RJ-45) PortYes
PoE Budget360W
Power SourcePower Supply

Product Information
Length17.3"
Mount TypeDesktop Mount, Wall Mount

Technical Information
Media Type SupportedOptical Fiber, Twisted Pair
Network Switch TypeManaged
Power Consumption360W

Warranty
Limited WarrantyLifetime
