Brand: Hikvision

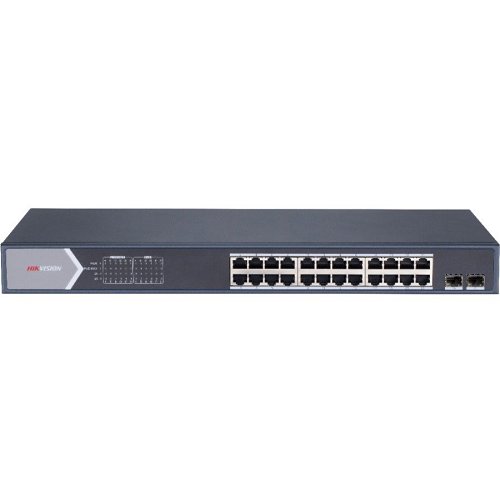

Hikvision DS-3E1526P-SI Smart Managed 24-Port Gigabit PoE Switch, 52Gbps, Blue

Name: Hikvision DS-3E1526P-SI Smart Managed 24-Port Gigabit PoE Switch, 52Gbps, Blue
Brand: Hikvision
SKU: DS-3E1526P-SI
Availability: InStock

in stock

In Stock

$439.19

Equipped with 24 gigabit Power over Ethernet (PoE) ports and 2 gigabit fiber optic ports.
Supports the IEEE 802.3at/af standards for Power over Ethernet ports.
Features include network topology management, alarm notifications, and network health monitoring.
Provides 6 kV surge protection for PoE ports.
Allows AF/AT cameras to reach distances up to 300 meters in extended mode.
Includes a PoE watchdog function that automatically detects and restarts unresponsive cameras.
Supports various Layer 2 management protocols, such as Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP), VLAN, link aggregation, Simple Network Management Protocol (SNMP), Quality of Service (QoS), and more.

SKU: DS-3E1526P-SI Categories: Network Switches, Networking Devices, Video Surveillance Brand: Hikvision

Description

Hikvision’s smart managed switches are designed to streamline network management and maintenance for the security industry. With these switches, users can effortlessly deploy, monitor, and expand their security networks on-demand using advanced software platforms. The solution enables viewing of network topology and real-time health monitoring, with instant device alarms, significantly reducing network operation and maintenance costs.

Certifications
TAA Compliant	No

General Information
Brand Name	Hikvision
Manufacturer	Hikvision
Manufacturer Part Number	DS-3E1526P-SI
Product Model	DS-3E1526P-SI
Product Name	24 Port Gigabit Smart PoE Switch
Product Type	Ethernet Switch

I/O Expansions
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	2
Number of Total Expansion Slots	2

Interfaces/Ports
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	2 x Gigabit Ethernet Expansion Slot, 24 x Gigabit Ethernet PoE
Total Number of Network Ports	24

Management & Protocols
Manageable	Yes

Media & Performance
Network Technology	1000Base-T, 1000Base-X

Miscellaneous
Environmental Certification	REACH, RoHS, WEEE
Environmentally Friendly	Yes

Network & Communication
Ethernet Technology	Gigabit Ethernet
Layer Supported	2
Networking Standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Others
ADI Part Number Replaces	HX-SW1326P
Model Number Replaces	DS-3E1326P-E

Physical Characteristics
Color	Blue
Depth	1.7"
Form Factor	Rack Mount
Height	8.7"
Weight (Approximate)	6.56 lb
Width	17.3"

Power Description
Frequency	50 Hz\|60 Hz
Input Voltage	120 V AC, 230 V AC
PoE (RJ-45) Port	Yes
PoE Budget	370W
Power Source	Power Supply

Technical Information
Media Type Supported	Optical Fiber, Twisted Pair
Network Switch Type	Managed, Smart
Power Consumption	400W
