Description
The EX41922 Series from EtherWAN is a rugged, unmanaged Gigabit switch, engineered for seamless integration with peripheral devices in demanding conditions. Ideal for surveillance systems in extreme environments, this switch offers a cost-efficient networking solution.
The EX41922-T model features two 10/100/1000Base RJ-45 ports with Power over Ethernet (PoE) capability and two 100/1000Base SFP fiber optic slots for extended distance connectivity. The uplink SFP interfaces offer either 100 or 1000 SFP speeds, selectable via DIP switch, and support daisy chain configurations. When paired with a compatible EtherWAN managed switch, these interfaces align with the proprietary Alpha-chain redundancy protocol. The EX41922-T delivers up to 30 Watts PoE per port, with a total power budget of 60 Watts. Despite being unmanaged, this switch is packed with advanced features such as 10K Jumbo Frame support, full wire speed Gigabit throughput, QoS features, and compliance with eco-friendly IEEE802.3az EEE (Energy-Efficient Ethernet) standards. Its robust construction, high performance, and energy efficiency make the EX41922-T a versatile and dependable choice for extensive networks.
**Key Features:**
**Hardened Grade:**
– Operates in temperatures ranging from -40 to 75°C (-40 to 167°F)

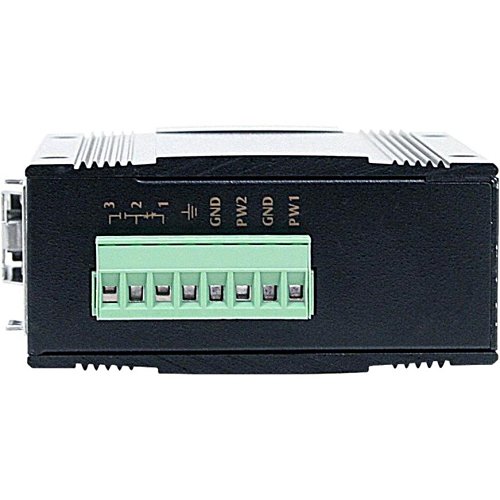

– Dual power input options via terminal block connector
– Compatible with DIN-Rail mounting
**Fiber Connectivity:**
– Offers up to two 1000BASE SFP ports for daisy chain or Alpha-chain configurations

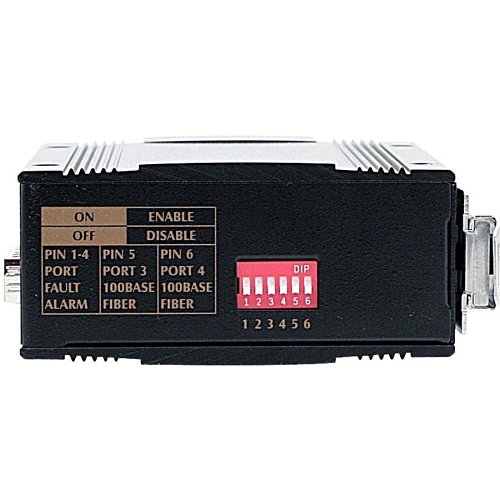

– Selection between 100BASE or 1000BASE SFP via DIP switch
**Port Failure Alarm:**
– Provides a relay alarm to notify users of power failure or link downs via DIP switch
**Full Gigabit Bandwidth and Jumbo Frame:**
– Ensures Gigabit wire-speed transmission for bandwidth-intensive applications
– Supports Jumbo frames up to 10K bytes, enhancing throughput and efficiency
EtherWAN – Delivering Crucial Connectivity.
