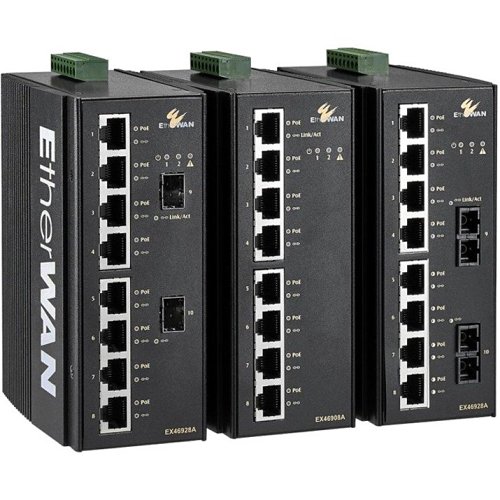

EtherWAN EX46928A-V-J EX46900A Series Hardened unmanaged 8-port 10/100/1000BASE (8 PoE) with 2-port 1000BASE-X (SX/LX/SFP) Ethernet Switch

Name: EtherWAN EX46928A-V-J EX46900A Series Hardened unmanaged 8-port 10/100/1000BASE (8 PoE) with 2-port 1000BASE-X (SX/LX/SFP) Ethernet Switch
Brand: Etherwan
SKU: EX46928A-V-J
Availability: InStock

in stock

Special Order

$763.30

Significantly enhances available bandwidth across your network infrastructure
Boost your network capacity with 8 networking ports, facilitating quick and easy data transfer
Utilizes a DC power source for essential power supply, ensuring optimal operational efficiency
Layer 2 switch offers a comprehensive range of features, including IGMP snooping, port mirroring, and spanning tree protocol

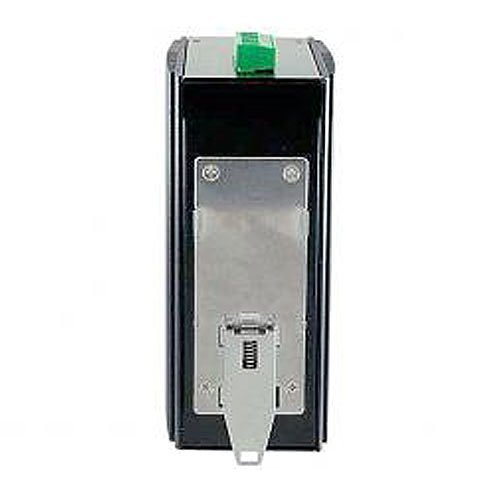

DIN Rail Mountable design enables seamless and efficient installation
The unmanaged switch delivers a fast, straightforward, and cost-effective solution for adding wired networking capabilities to any home, office, or small business environment, without the need for intervention
Equipped with a Gigabit Ethernet port for lightning-fast network speeds
Supports optical fiber cable to cover greater distances and deliver high data transmission rates between servers and network components

SKU: EX46928A-V-J Categories: Network Switches, Networking Devices, Video Surveillance Brand: Etherwan

Description

Introducing the EX46900A Series, a compact, hardened unmanaged PoE Gigabit switch designed for straightforward deployment in rugged environments. This industrial-grade switch features ten Gigabit Ethernet ports, including a mix of eight PoE-enabled ports (compliant with IEEE 802.3at) and two Gigabit fiber ports for extended connectivity. Despite being unmanaged, the EX46900A Series offers extensive features, including 9.6K Jumbo Frame support, full wire-speed Gigabit throughput, and eco-friendly IEEE 802.3az Energy Efficient Ethernet (EEE) compliance, making it a robust and energy-efficient network solution.

Key Features

Jumbo Frame Support: Handles frames up to 9.6K bytes
Power over Ethernet: Ports 1-8 offer PoE power delivery up to 30W
Fiber Connectivity: Supports up to two 1000BASE-SX ports with SC, ST, and SFP options
Energy Efficient Ethernet (EEE): Adheres to IEEE 802.3az standards
High Reliability: Designed with a fanless architecture and no moving parts for enhanced durability

Certifications
TAA Compliant	No

General Information
Brand Name	EtherWAN
Manufacturer	EtherWAN Systems, Inc
Manufacturer Part Number	EX46928A-V-J
Product Model	EX46928A-V-J
Product Name	EX46928A-V-J Ethernet Switch
Product Series	EX46900A
Product Type	Ethernet Switch

I/O Expansions
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	2
Number of Total Expansion Slots	2

Interfaces/Ports
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	2 x Gigabit Ethernet Expansion Slot, 8 x Gigabit Ethernet PoE
Total Number of Network Ports	8

Management & Protocols
Manageable	No

Media & Performance
Network Technology	10/100/1000Base-T, 1000Base-X

Miscellaneous
Package Contents	EX46928A-V-J Ethernet Switch DIN-Rail Mounting Kit

Network & Communication
Ethernet Technology	Gigabit Ethernet
Layer Supported	2
Networking Standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical Characteristics
Depth	4.9"
Form Factor	Compact, DIN Rail, Panel Mount, Rack Mount
Height	5.7"
Material	Metal
Product Material	Metal
Weight (Approximate)	2.87 lb
Width	2.6"

Power Description
Input Voltage	18, 57
PoE (RJ-45) Port	Yes
PoE Budget	120W
Power Source	DC

Technical Information
Media Type Supported	Optical Fiber, Twisted Pair
Network Switch Type	Unmanaged
Power Consumption	11.20W
