Brand: Altronix

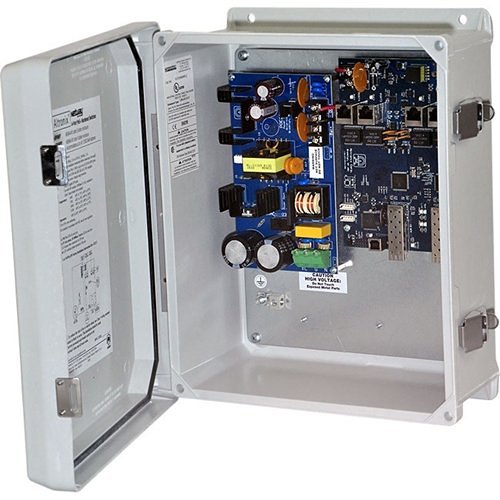

Altronix NETWAYSP4WP Dual Fiber Optic SFP 1G Link 4-Port PoE+ Switch and Power Supply, Hardened 120W Power Supply / BatCharger and Switch Boards Mounted in NEMA4/4X, IP66 Rated Outdoor Enclosure

Name: Altronix NETWAYSP4WP Dual Fiber Optic SFP 1G Link 4-Port PoE+ Switch and Power Supply, Hardened 120W Power Supply / BatCharger and Switch Boards Mounted in NEMA4/4X, IP66 Rated Outdoor Enclosure
Brand: Altronix
SKU: NETWAYSP4WP
Availability: InStock

in stock

Special Order

$789.44

Two (2) Gigabit SFP slots for fiber connectivity.
Four (4) Ethernet ports supporting speeds of 10/100/1000 Mbps.
Compatible with IEEE 802.3at (30W), IEEE 802.3af (15W), and Hi-PoE (60W) standards.
Total power capacity of 120W:
Equipped with four (4) PoE/PoE+ ports providing up to 30W each or two (2) Hi-PoE ports delivering 60W each.
Includes LED indicators for monitoring PoE activity.
Supports VLAN (Virtual Local Area Network) to enhance network efficiency and security by allowing device grouping.
Enclosed in NEMA 4/4X, IP66-11 rated casing suitable for outdoor environments.
Certified by UL in the U.S. and Canada.
Holds CE approval for compliance with European standards.

SKU: NETWAYSP4WP Categories: Network Switches, Networking Devices, Video Surveillance Brand: Altronix

Description

Dual 1G Fiber SFP, 4-port 10/100/1000 PoE/PoE+ switch configurable for 2x 60W Hi-PoE; includes a hardened 120W power supply/battery charger and switch boards housed in a NEMA4/4X, IP66 rated outdoor enclosure with integrated management technology.

The Altronix NetWaySP4WP Outdoor PoE+ Hardened Switch offers two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, enabling data transmission for PoE/PoE+/Hi-PoE compatible devices. It supports cameras and edge devices located up to 100 meters from the unit. The integrated technology enables remote monitoring, control, and diagnostics reporting.

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	NETWAYSP4WP
Product Line	NetWay
Product Model	NetWaySP4WP
Product Name	NetWaySP4WP Ethernet Switch
Product Type	Ethernet Switch

I/O Expansions
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	2
Number of Total Expansion Slots	2

Interfaces/Ports
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	2 x Gigabit Ethernet Expansion Slot, 4 x Gigabit Ethernet PoE+
Total Number of Network Ports	4

Media & Performance
Network Technology	10/100/1000Base-T, 1000Base-X

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes

Network & Communication
Ethernet Technology	Gigabit Ethernet
Layer Supported	2
Networking Standards	IEEE 802.3af, IEEE 802.3at

Physical Characteristics
Color Family	Gray
Depth	5.6"
Height	13.3"
Product Color	Gray
Weight (Approximate)	10.50 lb
Width	11.3"

Power Description
Frequency	50 Hz\|60 Hz
Input Voltage	120V AC, 230V AC, 48V DC
PoE (RJ-45) Port	Yes
PoE Budget	120W
Power Source	Power Supply

Technical Information
Media Type Supported	Optical Fiber, Twisted Pair

Warranty
Limited Warranty	Lifetime
