Description

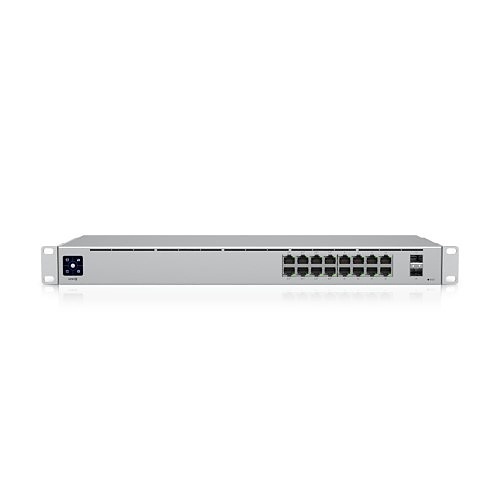

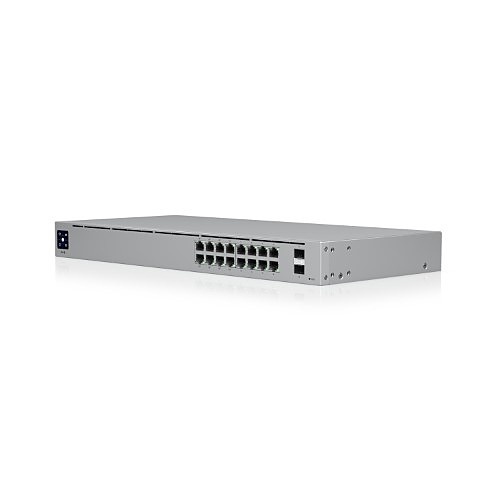

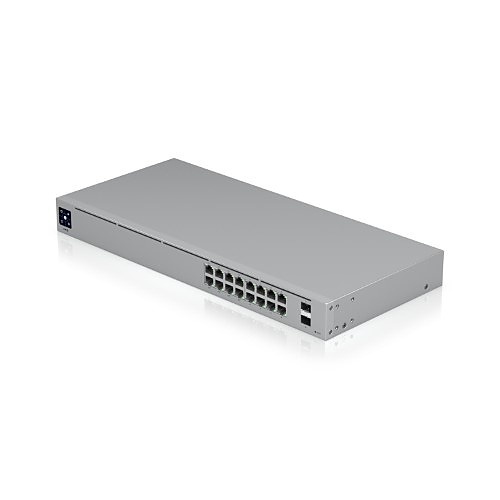

Enhance your organization’s networking capabilities with the fully manageable UniFi 16-Port Gigabit PoE+ Compliant Managed Switch by Ubiquiti. This versatile switch is ideal for both rack-mount and desktop setups, featuring passive cooling with 16 gigabit ports, including eight PoE+ connectors providing up to 32W each, and a cumulative power budget of 42W to efficiently power devices like network surveillance cameras. Each port supports 18 Gb/s of non-blocking throughput, offering a robust 36 Gb/s switching capacity and a forwarding rate of 26.78 Mpps. Additionally, it comes equipped with two 1Gb SFP Ethernet ports for seamless integration with other compatible network devices. Network administrators can monitor and manage the switch through the integrated 1.3″ touchscreen display or remotely via the UniFi Network Controller software, ensuring a streamlined networking experience.

General Information
Brand NameUbiquiti
ManufacturerUbiquiti Inc.
Manufacturer Part NumberUSW-16-POE
Product LineUniFi
Product ModelUSW-16-POE
Product NameUbiquiti Networks UniFi 16-Port Gigabit PoE+ Compliant Managed Switch with SFP
Product SeriesUSW
Product TypeNetwork Switch

I/O Expansions
Expansion Slot TypeSFP (mini-GBIC)
Number of SFP Slots2
Number of SFP+ Slots2
Number of Total Expansion Slots2

Interfaces/Ports
ModularYes
Network (RJ-45)Yes
Port/Expansion Slot Details2 x Gigabit Ethernet Expansion Slot, 8 x Gigabit Ethernet Network, 8 x Gigabit Ethernet PoE+
Total Number of Network Ports16
Uplink PortYes

Management & Protocols
ManageableYes

Media & Performance
Network Technology10/100/1000Base-T, 1000Base-X

Miscellaneous
Environmentally FriendlyYes
Features36 Gb/s Switching Capacity, 802.1X control and RADIUS VLAN, Debug terminal option for command-line interface, Fanless, silent cooling, Multi-Site Management, Spanning tree configuration, Storm control setting per port
Package Contents UniFi 16-Port PoE Switch Rackmount Hardware

Network & Communication
Ethernet Technology10 Gigabit Ethernet
Layer Supported2

Physical Characteristics
Compatible Rack Unit1U
Depth7.9"
Form FactorDesktop, Rack Mount
Height1.7"
MaterialSGCC Steel
Weight (Approximate)6.4 lb
Width17.4"

Power Description
Frequency50/60 Hz
Input Voltage100-240V AC
Power SourceAC, DC

Technical Information
Media Type SupportedOptical Fiber, Twisted Pair
PoEYes
Power Consumption18W

Warranty
Limited Warranty1 Year
