Description

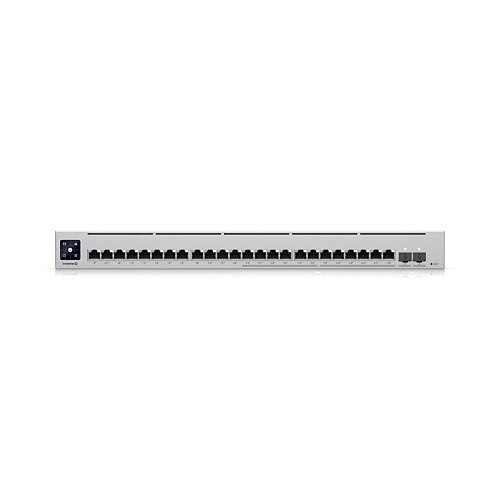

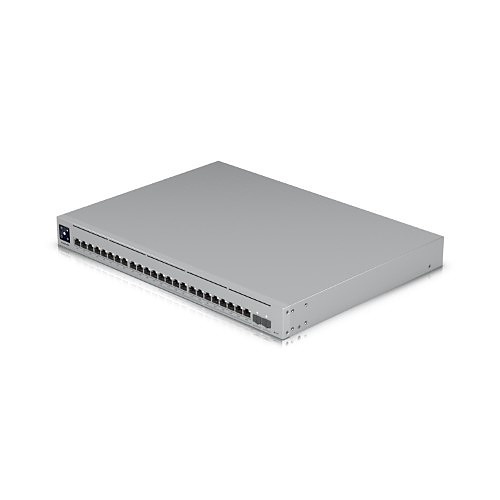

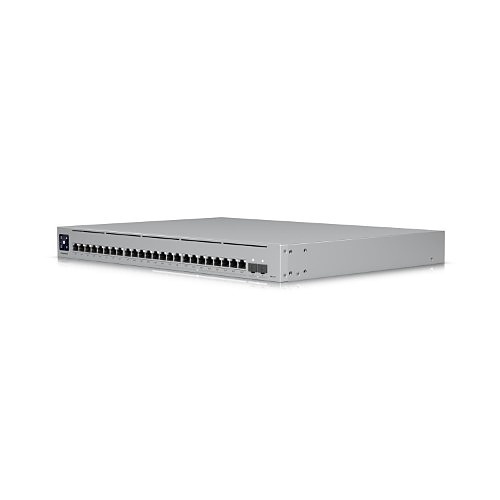

Optimize your operations to accommodate power-over-Ethernet (PoE) devices, including security cameras, VoIP phones, and access points, by integrating the Ubiquiti Switch Enterprise 24-Port Gigabit and 2.5G PoE+ Compliant Managed Switch into your network infrastructure. This Layer 3 managed switch offers twelve one-Gigabit Ethernet ports and twelve 2.5G ports, all adhering to the 802.3at PoE+ standard and supported by a 400W total power budget. It also includes two 10G SFP+ ports for high-speed fiber connectivity. Utilize the 1.3″ LCM color touchscreen for easy configuration, monitoring, and troubleshooting, or manage the switch remotely via the UniFi Network app, featuring an augmented reality component for a visual overview of your port connections. Rackmount hardware is provided for seamless installation.

General Information
Brand NameUbiquiti
ManufacturerUbiquiti Inc.
Manufacturer Part NumberUSW-ENTERPRISE-24-POE
Packaged Quantity1
Product LineUniFi
Product ModelUSW-ENTERPRISE-24-POE
Product NameUbiquiti Networks Switch Enterprise 24-Port Gigabit & 2.5G PoE+ Compliant Managed Switch with SFP+
Product SeriesUSW Enterprise
Product TypeNetwork Switch

I/O Expansions
Expansion Slot TypeSFP+
Number of SFP+ Slots2
Number of Total Expansion Slots2

Interfaces/Ports
ModularYes
Network (RJ-45)Yes
Port/Expansion Slot Details12 x 2.5 Gigabit Ethernet PoE+, 12 x Gigabit Ethernet PoE+, 2 x 10 Gigabit Ethernet Expansion Slot
Total Number of Network Ports24
Uplink PortYes

Management & Protocols
ManageableYes

Media & Performance
Network Technology10/100/1000Base-T, 10GBase-X, 2.5GBase-T

Miscellaneous
Features124 Gb/s Switching Capacity, The Ubiquiti Switch Enterprise has a 124 Gb/s with 62 Gb/s non-blocking throughput and a 92.25 Mpps forwarding rate for smooth data transfers

Network & Communication
Ethernet Technology10 Gigabit Ethernet
Layer Supported3
Networking StandardsIEEE 802.3af, IEEE 802.3at

Physical Characteristics
Depth12.8"
Height1.7"
MaterialSGCC Steel
Product MaterialGalvanized Cold Rolled Steel (SGCC)
Weight (Approximate)11.5 lb
Width17.4"

Power Description
Frequency50/60 Hz
Input Voltage100-240V AC
PoE (RJ-45) PortYes
PoE Budget400W
Power SourceAC, DC
Redundant Power Supply SupportedYes

Technical Information
Media Type SupportedOptical Fiber, Twisted Pair
PoEYes
Power Consumption550W

Warranty
Limited Warranty1 Year
