Brand: Veracity

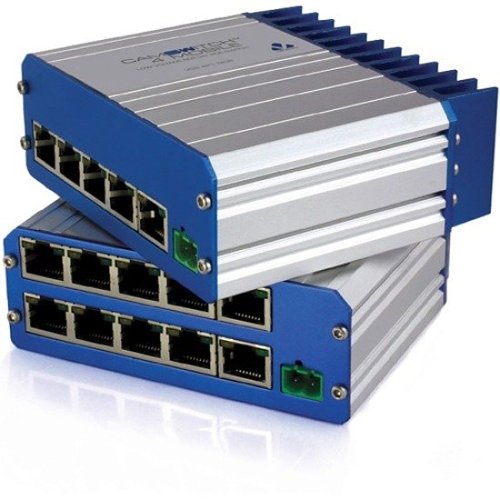

Veracity VCS-4P1-MOB CAMSWITCH 4-Port, Mobile Low Voltage PoE Switch for 12/24V app

Name: Veracity VCS-4P1-MOB CAMSWITCH 4-Port, Mobile Low Voltage PoE Switch for 12/24V app
Brand: Veracity
SKU: VCS-4P1-MOB
Availability: InStock

in stock

AT | DL | LU | VA | In Stock

$319.45

Optimizes network bandwidth availability for enhanced performance
Effortlessly establish a wired network using five integrated networking ports
Power supply through AC adapter ensures peak network efficiency
The Layer 2 switch offers a comprehensive suite of features such as IGMP snooping, port mirroring, and spanning tree protocol
Convenient wall-mountable design simplifies setup and usage
This unmanaged switch provides an affordable, hassle-free method to expand wired networking in homes, offices, or small businesses without the need for complex configuration
Fast Ethernet technology offers an optimal solution for extending network access to conference rooms, labs, lobbies, and departmental workgroups
Supports cost-effective twisted pair cables for high-speed data transfer over distances of up to 100 meters

SKU: VCS-4P1-MOB Categories: Network Switches, Networking Devices, Video Surveillance Brand: Veracity

Description

CAMSWITCH Mobile offers a robust networking solution tailored for deploying IP cameras and various PoE and network devices across transportation, battery, solar power, and other low-voltage scenarios. This system includes a 5 or 10 port 10/100 Ethernet switch, seamlessly converting an 8 to 40 volt DC supply into an 80 watt power source adhering to IEEE 802.3af/at standards.

CAMSWITCH 4 Mobile is equipped with 4 PoE ports supporting 802.3at, 1 non-PoE port, and a flexible DC power input, making it highly versatile for diverse applications.

Certifications
NDAA Compliant	Yes
TAA Compliant	Yes

General Information
Brand Name	Veracity
Manufacturer	Veracity USA, Inc
Manufacturer Part Number	VCS-4P1-MOB
Product Model	VCS-4P1-MOB
Product Name	Low Voltage 802.3AT PoE Switch
Product Series	VCS-4P1
Product Type	Ethernet Switch

Interfaces/Ports
Modular	No
Port/Expansion Slot Details	5 x Fast Ethernet Network
Stack Port	No
Total Number of Network Ports	5
Uplink Port	No

Management & Protocols
Manageable	No

Media & Performance
Network Technology	10/100Base-TX

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes

Network & Communication
Ethernet Technology	Fast Ethernet
Layer Supported	2
Networking Standards	IEEE 802.3at, IEEE 8023.af

Physical Characteristics
Depth	4.3"
Form Factor	Wall Mount
Height	1.6"
Package Type	Box
Weight (Approximate)	10.23 oz
Width	4.3"

Power Description
PoE Budget	80W
Power Source	AC Adapter
Redundant Power Supply Supported	No

Product Information
Length	4.33"

Technical Information
Media Type Supported	Twisted Pair
Power Consumption	60W\|40W\|20W

Warranty
Limited Warranty	5 Year
