Brand: Axis Communications

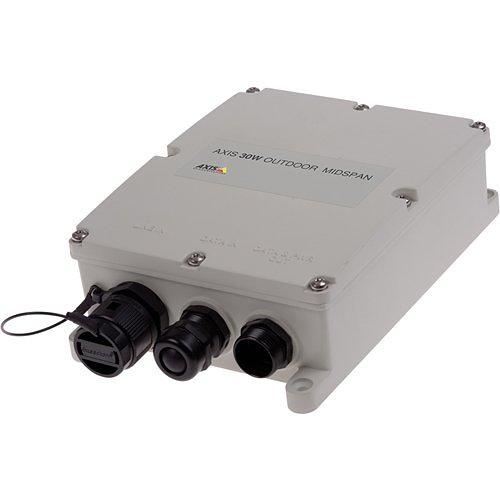

AXIS 30W Outdoor Ready IP66-/IP67-Rated Midspan

In Stock

$297.55

Designed for outdoor environments with IP66/IP67 and NEMA 4X ratings
Provides 30W Power over Ethernet (PoE) capability
Supports 1000 Mbps passthrough data rates

SKU: 01944-001 Categories: Networking Devices, PoE Injectors, Video Surveillance Brand: Axis Communications

Description

Power over Ethernet (PoE) technology provides a seamless, efficient, and affordable method for powering network hardware. A midspan device integrates power and data delivery to network equipment that supports built-in PoE, eliminating the necessity to replace existing Ethernet switches and cabling. The AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at standards for network devices. This midspan offers reliable and secure performance in outdoor settings and includes surge protection for both AC and PoE ports, safeguarding equipment against outdoor surges up to 6kV. Key features include:

– Outdoor-ready with IP66/67 and NEMA 4X ratings
– Supports IEEE 802.3af and 802.3at standards
– Operates on 100 to 240 V AC
– Complies with railway standards EN 50121-4 and IEC 62236-4

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Axis Communications
Manufacturer	Axis Communications
Manufacturer Part Number	01944-001
Product Model	30W
Product Name	30 W Outdoor Midspan
Product Type	PoE Injector

Interfaces/Ports
Input Ports	10/100/1000Base-T
Output Ports	PoE

Miscellaneous
Compatibility	AXIS Door Controllers:, A1001, A1601AXIS Fixed Cameras:, A9161, A9188-VEAXIS Illuminators:, C1310-E, C1410AXIS Thermal Cameras:, D2110-VE Security RadarAXIS Speakers:, F34 Main Unit, F34 Surveillance system, F41 Main Unit, F44 Dual Audio InputAXIS PTZ Cameras:, I8016-LVEAXIS Modular Cameras:, Long Range PoE Extender KitAXIS Power Over Ethernet:, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, M3015, M3016, M3037-PVE, M3057-PLVE, M3057-PLVE Mk II, M3058-PLVE, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3077-PLVE, M3115-LVE, M3116-LVE, M3205-LVE, M3206-LVE, M4206-LV, M4206-V, M5054, M5055, M5065, M5525-E, M7104, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P1264, P1265, P1275, P1280-E, P1290-E, P1375, P1375-E, P1377, P1377-LE, P1378, P1378-LE, P1435-LE, P1445-LE-3, P1447-LE, P1448-LE, P1455-LE, P3227-LV, P3227-LVE, P3228-LV, P3228-LVE, P3245-LV, P3245-LVE, P3245-V, P3245-VE, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3367-V, P3367-VE, P3374-LV, P3374-V, P3375-LV, P3375-LVE, P3375-V, P3375-VE, P3715-PLVE, P3717-PLE, P3719-PLE, P3807-PVE, P5414-E, P5415-E, P5654-E, P5655-E, P7304, P8815-2AXIS PoE Extenders:, P9106-V, PoE Splitter 5 VAXIS Security Radars:, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1645-LE, Q1647, Q1647-LEAXIS Fixed Dome Cameras:, Q1941-E, Q1941-E PT Mount, Q1942-E, Q1942-E PT Mount, Q2901-E, Q2901-E PT MountAXIS Video Encoders:, Q3515-LV, Q3515-LVE, Q3517-LV, Q3517-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q3615-VE, Q3617-VE, Q3708-PVE, Q3709-PVE, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-EAXIS People Counters:, Q7411, Q7424-R Mk II, Q9216-SLVAXIS Housings:, T90C20 Fixed Dome IR-LED, T90D20 PoE IR-LED, T90D25 PoE W-LEDAXIS Intercoms:, T92E20 Outdoor Housing, T92G20 Outdoor Housing, T93F20 Outdoor HousingAXIS I/O Relay Modules:
Package Contents	30W Outdoor Midspan Installation Guide

Physical Characteristics
Depth	5.5"
Form Factor	External
Height	2.4"
Weight (Approximate)	3.09 lb
Width	6.7"

Power Description
Input Voltage	120V AC, 230V AC
Maximum Frequency	60 Hz
Maximum Output Power	30W
Maximum Output Voltage	54 V DC
Minimum Frequency	50 Hz
Minimum Frequency (Hz)	50

Product Information
Mount Type	Pole Mount, Wall Mount
Protection Type	Surge Protection

Warranty
Limited Warranty	3 Year
