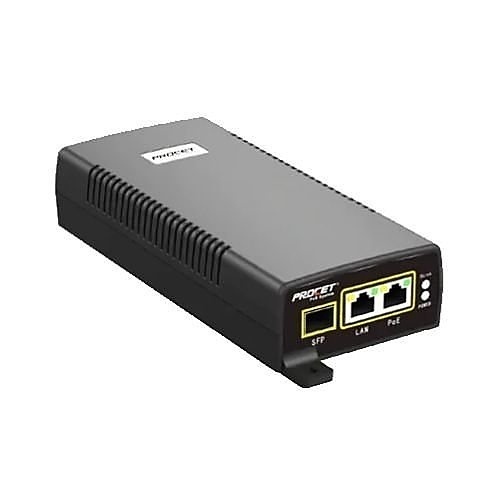

Hanwha SPO-6011 60W PoE Injector

Name: Hanwha SPO-6011 60W PoE Injector
Brand: Hanwha Vision
SKU: SPO-6011
Availability: InStock

in stock

Special Order

$205.87

60W / 1.1A High Power over Ethernet (HPoE) Injector
Includes SFP Port for Network Connectivity

SKU: SPO-6011 Categories: Networking Devices, PoE Injectors, Video Surveillance Brand: Hanwha Vision

Description

The SPO-6011 Power over Ethernet (PoE) injector seamlessly integrates power delivery over Ethernet cabling, fully adhering to IEEE802.3BT, IEEE802.3AT, and IEEE802.3AF standards. This PoE solution is compatible with existing Ethernet switches and networked devices. The injector delivers up to 60W of High Power over Ethernet (HPoE/PoE++) and features a built-in SFP slot. It is compatible with devices like the XNP-9250R, XNP-8250R, XNP-6400R, and TNB-9000.

Environmental Conditions
Operating Relative Humidity (H-H)	20%-90%, Non-Condensation
Operating Temperature (T-T)	-40°F-131°F
Storage Temperature (T-T)	-40°F-185°F

General Information
Brand Name	Hanwha Techwin
Led Indicators	LAN, Load Active, PoE, Power, SFP Fiber
Manufacturer	Hanwha Vision
Manufacturer Part Number	SPO-6011
Product Model	SPO-6011
Product Name	60W PoE Injector
Product Type	PoE Injector

Interfaces/Ports
Input Ports	10/100/1000Base-T
Output Ports	10/100/1000Base-T

Miscellaneous
Compatibility	Hanwha Camera: XNP-6400R XNP-8250R XNP-9250R TNB-9000
Environmental Certification	cUL, RoHS, WEEE
Environmentally Friendly	Yes
Package Contents	SPO-6011 PoE Injector SFP port

Physical Characteristics
Color	Black
Color Family	Black
Depth	1.6"
Form Factor	Desktop, Rack, Wall Mount
Height	8.6"
Weight (Approximate)	1.06 lb
Width	3.3"

Power Description
Input Voltage	100-240V AC
Maximum Input Current	1.5A
Maximum Output Current	1.10 A
Maximum Output Power	60W
Maximum Output Voltage	55 V DC

Product Information
Mount Type	Wall Mount

Warranty
Limited Warranty	3 Year
