Description

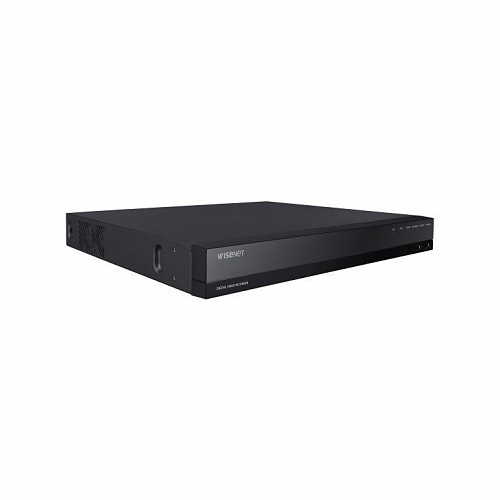

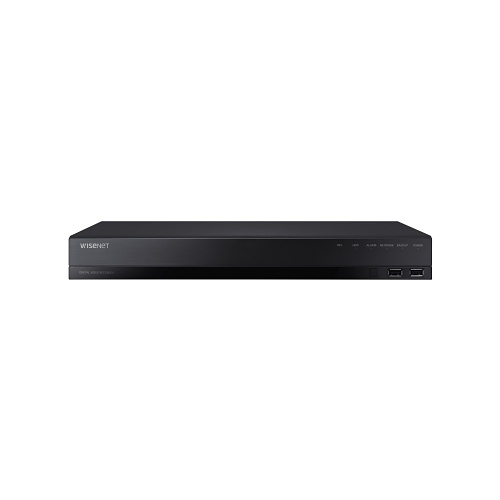

The Hanwha Vision HRX-1634 is a 16-channel pentabrid digital video recorder (DVR) designed for the video surveillance industry, offered without an internal hard disk drive (HDD).
Hanwha HRX-1634 16-Channel DVR, Supports Analog High Definition, TVI, CVI, CVBS, and IP Technologies
In Stock
Special Order
$451.22
- 5-In-1 16-Channel Pentabrid DVR System
- Supports AHD, HDTVI, HDCVI, CVBS, and IP Inputs
- Allows up to 18 Channels (Maximum 16 Analog Channels with additional Network Channels, varying from 2 to 18 based on analog usage), supports resolutions up to 8MP
- Compatible with H.265, H.264, and MJPEG Compression Formats
- Capable of Recording from Analog Cameras up to 8MP at 15 fps, 5MP at 20 fps, 4MP at 30 fps, 2MP at 30 fps, 1MP at 30 fps, and 960H (or 720H) at 30 fps per channel
- Recording Bandwidth Up to 128 Mbps, Playback Bandwidth of 32 Mbps
- Features 4-Channel Audio Input and 1-Channel Audio Output, along with 16 Alarm Inputs and 4 Relay Outputs
- Supports Coaxial Control
- Accommodates Up to Two SATA HDDs with 6TB Capacity Each
- Offers HDMI and VGA Video Output, plus a Spot Monitor Output
SKU:
HRX-1634
Categories: Recording Devices, Video Surveillance, Video Surveillance DVRs
Brand: Hanwha Vision
| Audio | |
| Mobile Operating System Compatibility | iOS|Android |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HRX1634 |
| Product Model | HRX-1634 |
| Product Name | 16CH Pentabrid DVR |
| Product Series | HRX |
| Product Type | Video Surveillance Station |
| Interfaces/Ports | |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| HDMI | Yes |
| Number of USB Ports | 3 |
| Number of VGA Outputs | 1 |
| USB | Yes |
| USB Standard | USB 2.0, USB 3.0 |
| VGA | Yes |
| Miscellaneous | |
| Environmental Certification | UL |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Color | Black |
| Color Family | Black |
| Depth | 12.6" |
| Height | 1.7" |
| Width | 14.6" |
| Power Description | |
| Input Voltage | 12V DC |
| Maximum Power Consumption | 40W |
| Technical Information | |
| HD Recording | Yes |
| Maximum Frame Rate | 30 fps |
| Number of Channels | 16 |
| Video Signal Format | NTSC, PAL |
| Warranty | |
| Limited Warranty | 3 Year |
