Description
The Hanwha Vision HRX-1634-12TB is a 16-channel pentabrid DVR equipped with a 12TB hard drive, designed for advanced digital video recording applications.

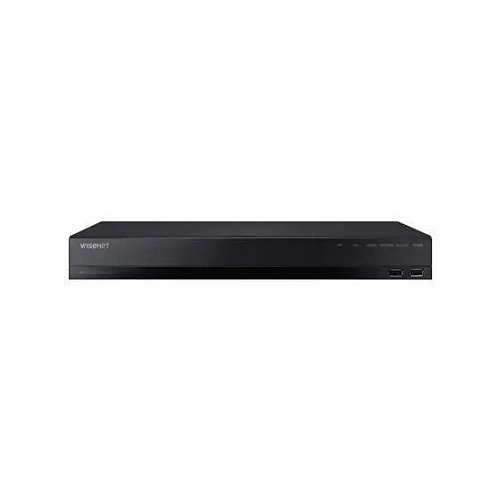

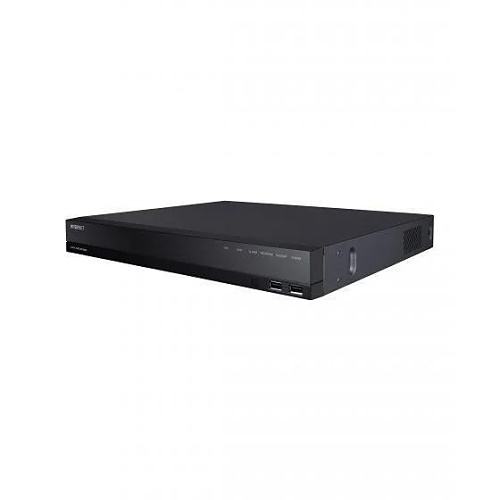

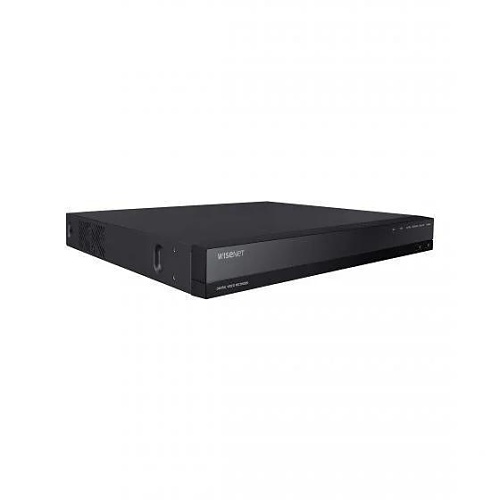

Hanwha HRX-1634-12TB 5-in-1 16-Channel Pentabrid DVR, 12TB
in stock
Special Order
$1,263.44
- 5-in-1 16-Channel Pentabrid Digital Video Recorder (DVR)
- Supports AHD, HDTVI, HDCVI, CVBS, and IP Inputs
- Offers a Total of 18 Channels (Combining a Maximum of 16 Analog Channels with up to 2-18 Network Channels depending on Analog Configuration), Supports up to 8MP Resolution
- Compatible with H.265, H.264, and MJPEG Compression Standards
- Records Analog Cameras at Various Resolutions: 8MP (15 fps), 5MP (20 fps), 4MP (30 fps), 2MP (30 fps), 1MP (30 fps), 960H/720H (30 fps) per Channel
- Boasts a Maximum Recording Bandwidth of 128 Mbps and Playback Bandwidth of 32 Mbps
- Features 4-Channel Audio Input / 1-Channel Audio Output, Supports 16 Alarm Inputs and 4 Relay Outputs
- Includes Coaxial Control Capability
- Supports Up to 2 SATA Hard Drives with a Capacity of 6TB Each
- Provides HDMI and VGA Video Outputs and Includes 1 Spot Monitor Output
SKU:
HRX-1634-12TB
Categories: Recording Devices, Video Surveillance, Video Surveillance DVRs
Brand: Hanwha Vision
| Audio | |
| Mobile Operating System Compatibility | iOS|Android |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HRX-1634-12TB |
| Product Model | HRX-1634 |
| Product Name | 16CH Pentabrid DVR |
| Product Series | HRX |
| Product Type | Video Surveillance Station |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of USB Ports | 3 |
| USB | Yes |
| Miscellaneous | |
| Environmental Certification | UL |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Color | Black |
| Color Family | Black |
| Depth | 12.6" |
| Height | 1.7" |
| Width | 14.6" |
| Power Description | |
| Input Voltage | 12V DC |
| Maximum Power Consumption | 40W |
| Storage | |
| Hard Drive Capacity | 12TB |
| Technical Information | |
| HD Recording | Yes |
| Maximum Frame Rate | 30 fps |
| Number of Channels | 16 |
| Storage Capacity | 12TB |
| Video Signal Format | NTSC, PAL |
| Warranty | |
| Limited Warranty | 3 Year |
