Description
The Hanwha Vision HRX-1634-6TB is a 16-channel pentabrid digital video recorder equipped with a 6TB hard drive, designed for advanced video surveillance solutions.

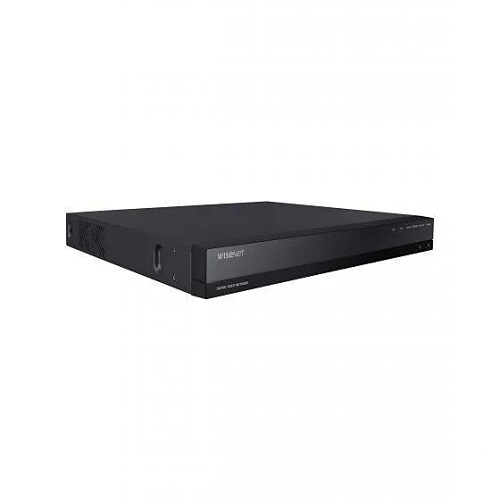

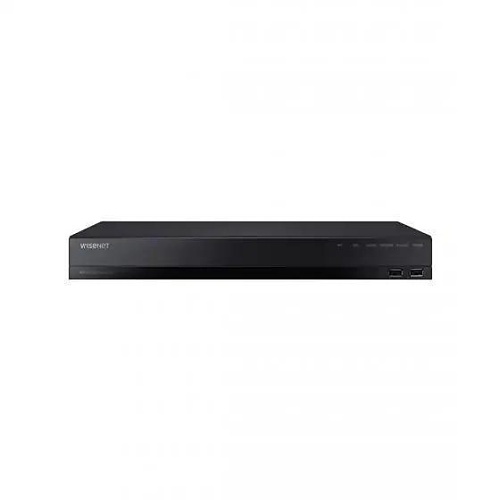

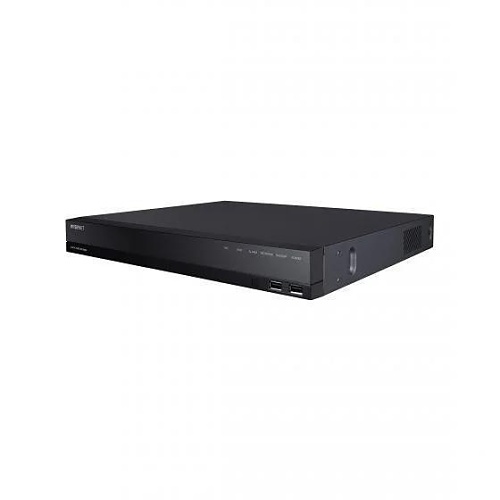

Hanwha HRX-1634-6TB 16-Channel Pentabrid DVR with 6TB Storage
in stock
Special Order
$857.34
- 5-in-1 16-Channel Hybrid DVR
- Supports AHD, HDTVI, HDCVI, CVBS, and IP Inputs
- Offers a total of 18 channels (up to 16 Analog and 2-18 Network channels based on analog usage), with up to 8MP resolution
- Utilizes H.265, H.264, and MJPEG Codec
- Analog camera recording capabilities: 8MP (15 fps), 5MP (20 fps), 4MP (30 fps), 2MP (30 fps), 1MP (30 fps), and 960H (or 720H) (30 fps) per channel
- Maximum recording bandwidth of 128 Mbps and playback bandwidth of 32 Mbps
- Features 4-channel audio input and 1-channel audio output, along with 16 alarm inputs and 4 relay outputs
- Coaxial control functionality
- Supports up to 2 SATA HDDs (6TB per HDD)
- HDMI and VGA video output, with an additional spot monitor output
SKU:
HRX-1634-6TB
Categories: Recording Devices, Video Surveillance, Video Surveillance DVRs
Brand: Hanwha Vision
| Audio | |
| Mobile Operating System Compatibility | iOS|Android |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HRX-1634-6TB |
| Product Model | HRX-1634 |
| Product Name | 16CH Pentabrid DVR |
| Product Series | HRX |
| Product Type | Video Surveillance Station |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of USB Ports | 3 |
| USB | Yes |
| Miscellaneous | |
| Environmental Certification | UL |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Color | Black |
| Color Family | Black |
| Depth | 12.6" |
| Height | 1.7" |
| Width | 14.6" |
| Power Description | |
| Input Voltage | 12V DC |
| Maximum Power Consumption | 40W |
| Storage | |
| Hard Drive Capacity | 6TB |
| Technical Information | |
| HD Recording | Yes |
| Maximum Frame Rate | 30 fps |
| Number of Channels | 16 |
| Storage Capacity | 6TB |
| Video Signal Format | NTSC, PAL |
| Warranty | |
| Limited Warranty | 3 Year |
