Description

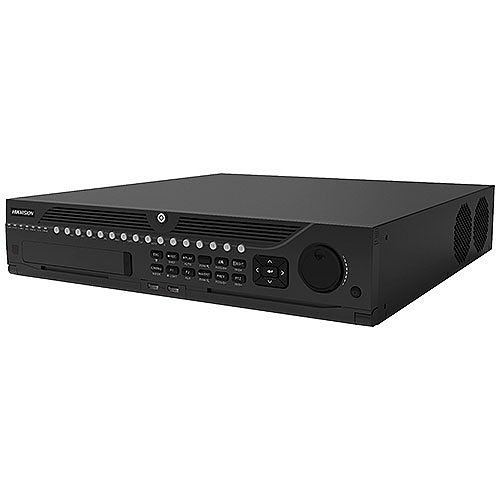

Introducing the Hikvision IDS-9016HUHI-M8/S Pro Series 16-Channel TurboHD DVR, a robust solution for all your surveillance requirements. This high-performance digital video recorder supports up to 16 analog camera inputs and includes 8 SATA interfaces, guaranteeing extensive connectivity for your security infrastructure. Equipped with state-of-the-art H.265 Pro video compression technology, it delivers exceptional video quality while optimizing storage efficiency. Enjoy superior encoding capabilities with support for resolutions up to 8MP at 8 fps and 5MP at 12 fps. The DVR is compatible with a range of video input standards, including HDTVI, AHD, CVI, CVBS, and IP, and supports up to 34 network camera inputs. It also features POS-triggered recording with overlay capabilities for comprehensive monitoring solutions. For enhanced data security, the system supports RAID configurations, reducing the potential for data loss. Upgrade your security system with the Hikvision IDS-9016HUHI-M8/S and achieve unparalleled peace of mind.

Certifications
TAA CompliantNo

General Information
Bandwidth320 Mbps
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberIDS-9016HUHI-M8/S
Product LineTurbo HD
Product ModelIDS-9016HUHI-M8/S
Product NameTurboHD DVR
Product SeriesPro
Product TypeVideo Surveillance Station

Interfaces/Ports
Composite Video InYes
Composite Video OutYes
HDMIYes
Number of VGA Out1
Total Number of Audio In Ports16
Total Number of Audio Out Ports2
USBYes

Network & Communication
EthernetYes
Remote ManagementYes

Others
ADI Part Number ReplacesHX-T9016KU12, HX-T9016KU4
Model Number ReplacesDS-9016HUI-K8-4TBDS-9016HUI-K8-12TB

Physical Characteristics
Depth18.3"
DVR Weight19.84 lb
Height3.5"
Width17.5"

Storage
Hard Drive Capacity12TB
Recording Formats4K

Technical Information
Connectivity TechnologyWired
HD RecordingYes
Maximum Frame Rate30 fps
Power Consumption35W
Storage Capacity12TB
System ComponentsDigital Video Recorder
Total Number of Channels16
Video Signal FormatNTSC, PAL

Video
Maximum Resolution8MP
