Description

The WizSense Series leverages Dahua’s advanced analytics for a user-friendly experience, integrating Smart Motion Detection and Perimeter Protection tailored for human and vehicle image focus. This minimizes irrelevant footage, optimizing essential video capture and reducing false alarms. Designed for comprehensive surveillance, WizSense offers an ideal solution for small and medium-sized businesses with cost-effective pricing.

The Dahua HDCVI Security System is a comprehensive package that facilitates rapid deployment of a complete video surveillance solution. Featuring 5 MP resolution cameras in a 16:9 aspect ratio, it delivers sharp video quality. The HDCVI DVR includes built-in motion detection algorithms, alarm triggers, and customizable recording modes, compatible with various existing systems through multiple video outputs. Dahua’s HDCVI technology utilizes existing coaxial infrastructure to reduce the need for new networking and power cabling, thereby saving significant time and costs.

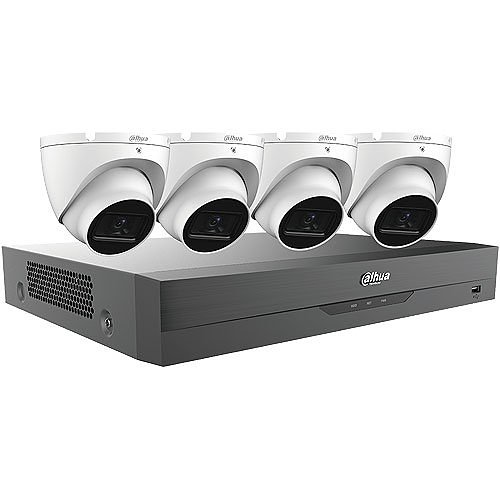

**Kit Includes**

**(4) A51BJ02 5MP Turret Cameras**

– 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
– 5 MP at 25 fps Maximum Resolution, 2.8 mm Fixed Lens
– 16:9 Aspect Ratio for accurate imaging
– Maximum IR Length 30 m (98.43 ft), Smart IR
– IP67 Ingress Protection

**(1) X81B1E2 4K 4-Channel Pentabrid DVR, 2TB HDD**

– 2 TB Pre-installed Hard Disk Drive
– Four-channel Penta-brid Recorder, Dual-streaming
– Smart H.265 and Smart H.264 Dual Codec
– Recording Resolution of 5 MP at 12 fps or 4K at 7 fps on all HDCVI Channels
– AI Coding Technology for superior human/vehicle video quality
– Features Perimeter Protection and Smart Motion Detection (SMD)

Camera
Maximum Camera Resolution2880 x 1620

General Information
Bandwidth64 Mbps
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberC845E42A
Product LineWizSense
Product ModelC845E42A
Product Name5MP HDCVI Security System
Product TypeVideo Surveillance System

Interfaces/Ports
Composite Video InYes
Composite Video OutYes
HDMIYes
Number of VGA Out1
Total Number of Audio In Ports4
Total Number of Audio Out Ports1

Miscellaneous
Country of OriginCN
Package ContentsX81B1E2 4-channel HDCVI DVR with Analytics+, A51BJ02 5MP HDCVI Eyeball CameraPrinted ManualPrinted Regulatory Guide3 x Plastic Wall Anchors with ScrewsMounting Templateand more below, 3 x Molex Units, 4 x Screws, Adapter, Alarm Cable, Ethernet Cable RJ45, Mouse, Power Adapter with Power Cord, Printed Manual, Printed Regulatory Guide, Quick Network Guide

Network & Communication
EthernetYes
Remote ManagementYes

Others
ADI Part Number ReplacesVD-C544E42
Model Number ReplacesC544E42

Physical Characteristics
Camera Weight10.93 oz
DVR Weight2.65 lb

Storage
Hard Drive Capacity2TB
Recording Formats4K

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
HD RecordingYes
Maximum Frame Rate30 fps
Night VisionYes
Number of IR LEDs1
Power Consumption3.20W
Storage Capacity2TB
System ComponentsCamera, Digital Video Recorder
Total Number of Channels4
Video FormatsH.264, H.265
Video Signal FormatNTSC

Video
Maximum Resolution4MP
