Description

The WizSense Series devices integrate Dahua’s advanced analytics with a user-friendly interface, offering Smart Motion Detection and Perimeter Protection features that prioritize human and vehicle detection. These functions help reduce false alarms by filtering out irrelevant footage, ensuring critical video capture and delivering efficient general surveillance for small to medium-sized businesses at a competitive price point.

The Dahua HDCVI Security System facilitates swift installation of a video surveillance setup, featuring 8 MP cameras with True Wide Dynamic Range for crystal-clear imaging. The HDCVI DVR incorporates motion detection algorithms, alarm triggers, and customizable recording modes. Both the cameras and DVR support multiple video outputs, ensuring compatibility with various existing systems. Thanks to Dahua’s HDCVI technology, the system can utilize existing coaxial cables, eliminating the need for additional networking and power wiring, thus saving time and costs.

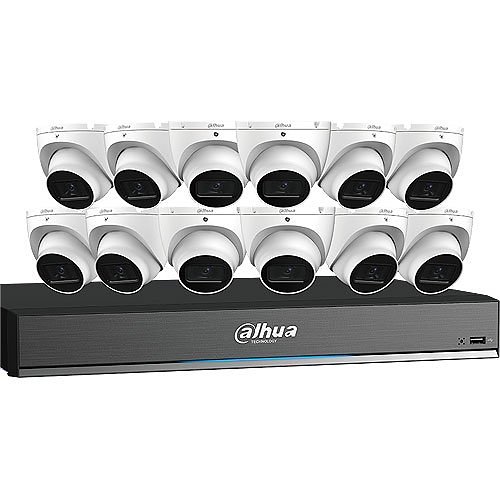

**Kit Components:**
– **(12) A81AJ22 8MP Turret Cameras**
– 1/2.7-inch 8 MP Progressive-scan CMOS Sensor
– 3840 x 2160 video resolution at 15 fps, 2.8 mm fixed lens
– Smart IR with a maximum IR length of 30 m (98.43 ft)
– IP67-rated weatherproof protection

– **(1) X82R3N4 4K 16-Channel DVR with 4TB HDD**
– Pre-installed 4 TB Hard Disk Drive
– 16-channel Penta-brid recorder with dual-streaming capabilities
– Supports Smart H.265 and Smart H.264 dual codec
– 4K recording resolution at 15 fps on all HDCVI channels
– Includes AI coding for superior human/vehicle video quality
– Equipped with Perimeter Protection and Smart Motion Detection (SMD) features

Camera
Camera TypeEyeball
Maximum Camera Resolution3840 x 2160

General Information
Bandwidth128 Mbps
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberC868E124A
Product LineWizSense
Product ModelC868E124A
Product Name4K HDCVI Security System
Product TypeVideo Surveillance System

Interfaces/Ports
Composite Video InYes
Composite Video OutYes
HDMIYes
Number of VGA Out1
Total Number of Audio In Ports1
Total Number of Audio Out Ports1
USBYes

Miscellaneous
Country of OriginCN
Package Contents12 x 8MP HDCVI Eyeball CamerasPrinted ManualPrinted Regulatory GuidePlastic Wall Anchors with Screws (x3)Mounting Template16-Channel Analytics+ 4K HDCVI DVRand more below, 3 x Molex Units, 4 x Screws, Adapter, Alarm Cable, Ethernet Cable, RJ45, Mouse, Power Adapter with Power Cord, Printed Manual, Printed Regulatory Guide, Quick Network Guide

Network & Communication
EthernetYes
Remote ManagementYes

Others
ADI Part Number ReplacesVD-C7168E124
Model Number ReplacesC7168E124

Physical Characteristics
Camera Weight10.93 oz
DVR Weight5.29 lb

Storage
Hard Drive Capacity4TB
Recording Formats4K

TBD
Number Of Cameras Included12

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
HD RecordingYes
Maximum Frame Rate30 fps
Night VisionYes
Number of IR LEDs1
Power Consumption32W
Storage Capacity4TB
System ComponentsCamera, Digital Video Recorder
Total Number of Channels16
Video FormatsH.264, H.265
Video Signal FormatNTSC

Video
Maximum Resolution4MP
