Description

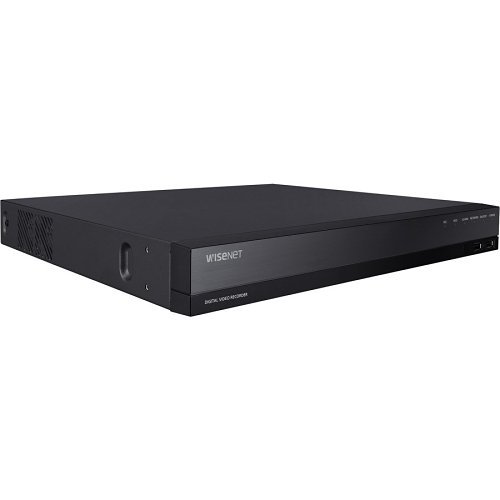

The Hanwha Vision HRX-1634-4TB is a 16-channel pentabrid DVR equipped with a 4TB hard drive for comprehensive surveillance solutions.
Hanwha HRX-1634 8MP 16-Channel Pentabrid DVR, up to SATA HDDs, 128Mbps, 4TB HDD
in stock
Special Order
$721.97
- 5-in-1 16-Channel Pentabrid DVR
- Compatible with AHD, HDTVI, HDCVI, CVBS, and IP inputs
- Supports a total of 18 channels (16 analog and 2 network channels), with resolutions up to 8MP
- Utilizes H.265, H.264, and MJPEG codecs
- Records analog camera footage up to 8MP at 15fps, 5MP at 20fps, 4MP at 30fps, 2MP at 30fps, 1MP at 30fps, and 960H (or 720H) at 30fps, per channel
- Maximum recording bandwidth of 128Mbps, with playback bandwidth up to 32Mbps
- Features 4-channel audio input and a single audio output, along with 16 alarm inputs and 4 relay outputs
- Includes coaxial control functionality
- Supports up to 2 SATA HDDs, each with a capacity of up to 6TB
- Offers HDMI and VGA video outputs, as well as 1 spot monitor output
SKU:
HRX-1634-4TB
Categories: Hybrid Video Recorders, Recording Devices, Video Surveillance
Brand: Hanwha Vision
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Manufacturer Part Number | HRX-1634-4TB |
| Product Model | HRX-1634-4TB |
| Product Name | 16 Channel Pentabrid DVR |
| Product Series | HD+ |
| Product Type | DVR |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of USB Ports | 3 |
| USB | Yes |
| VGA | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Physical Characteristics | |
| Color | Black |
| Depth | 12.6" |
| Height | 1.73" |
| Weight (Approximate) | 9.9 lb |
| Width | 14.57" |
| Power Description | |
| Input Voltage | 12V DC |
| Maximum Power Consumption | 40W |
| Storage | |
| Hard Drive Capacity | 4TB |
| Technical Information | |
| HD Recording | Yes |
| Maximum Frame Rate | 30 fps |
| Number of Channels | 16 |
| Storage Capacity | 4TB |
| Video Signal Format | NTSC, PAL |
| Warranty | |
| Limited Warranty | 3 Year |
