Description
Total 18 Channels (maximum of 16 analog channels plus 2-18 network channels, contingent on the number of analog inputs), supporting resolutions up to 8MP

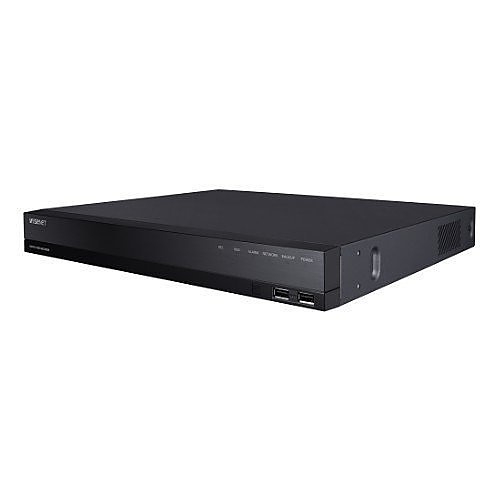

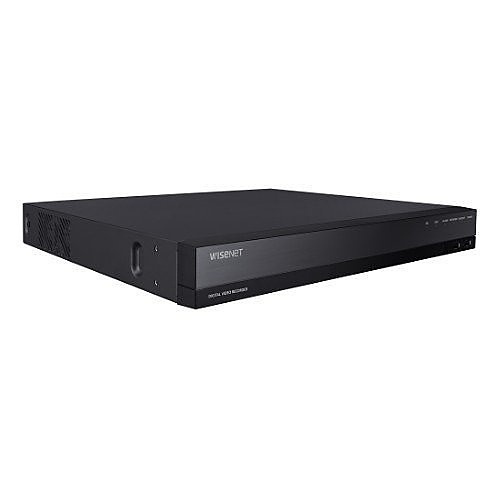

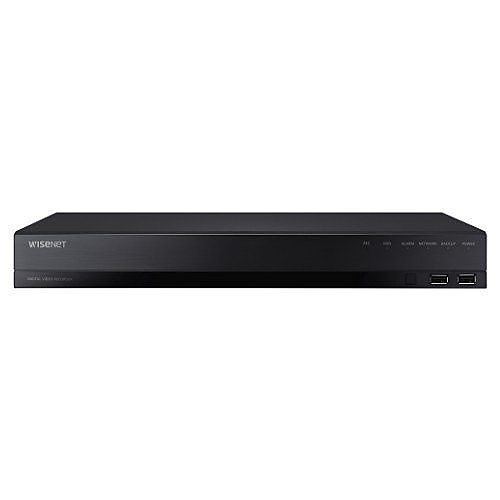

Hanwha HRX-1634-8TB 16-Channel Pentabrid DVR, 128 Mbps, 8TB
in stock
Special Order
$992.70
- NDAA and FCC Compliance
- 5-in-1 16-Channel Pentabrid Digital Video Recorder (DVR)
- Supports AHD, HDTVI, HDCVI, CVBS, and IP Inputs
- Compatible with H.265, H.264, and MJPEG Codecs
SKU:
HRX-1634-8TB
Categories: Hybrid Video Recorders, Recording Devices, Video Surveillance
Brand: Hanwha Vision
| General Information | |
| Bandwidth | 100 Mbps |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HRX-1634-8TB |
| Product Model | HRX-1634 |
| Product Name | 16CH Pentabrid DVR |
| Product Type | Video Surveillance Station |
| Interfaces/Ports | |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| HDMI | Yes |
| Number of VGA Out | 1 |
| Total Number of Audio In Ports | 4 |
| Total Number of Audio Out Ports | 1 |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Physical Characteristics | |
| Depth | 12.6" |
| DVR Weight | 9.92 lb |
| Height | 1.7" |
| Width | 14.6" |
| Storage | |
| Hard Drive Capacity | 8TB |
| Recording Formats | 4K |
| Technical Information | |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| Maximum Frame Rate | 30 fps |
| Power Consumption | 40W |
| Storage Capacity | 8TB |
| System Components | Digital Video Recorder |
| Total Number of Channels | 16 |
| Video Signal Format | NTSC, PAL |
| Video | |
| Maximum Resolution | 8MP |
| Warranty | |
| Limited Warranty | 3 Year |
