Description

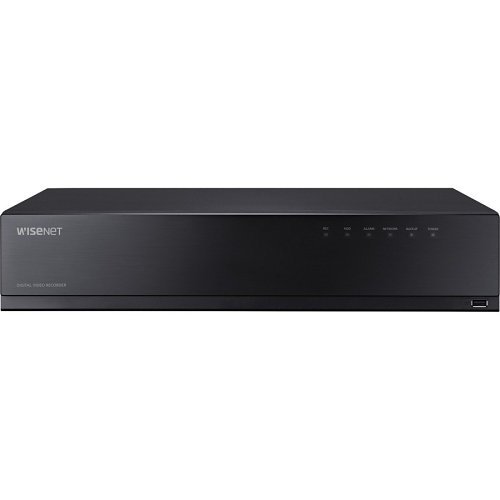

The Samsung HRX-1635-4TB is a 16-channel pentabrid DVR featuring a 4TB hard drive for extensive video surveillance storage.
Hanwha HRX-1635 8MP 16-Channel Pentabrid DVR, 128Mbps, 4TB HDD
in stock
In Stock
$1,041.78
- 5-in-1 16-Channel Pentabrid Digital Video Recorder (DVR)
- Support for AHD, HDTVI, HDCVI, CVBS, and IP inputs
- Total of 18 Channels (16 Analog Channels + 2 Network Channels), supporting up to 8MP resolution
- Compatible with H.265, H.264, and MJPEG codecs
- Analog Camera Recording at 8MP (15fps), 5MP (20fps), 4MP (30fps), 2MP (30fps), 1MP (30fps), or 960H (or 720H) at 30fps per channel
- Maximum Recording Bandwidth of 128Mbps, with Playback Bandwidth up to 32Mbps
- 4-Channel Audio Input and 1-Channel Audio Output, with 16 Alarm Inputs and 4 Relay Outputs
- Coaxial Control Features
- Supports up to 8 SATA HDDs (each up to 6TB)
- HDMI and VGA Video Outputs, plus a Spot Monitor Output
SKU:
HRX-1635-4TB
Categories: Hybrid Video Recorders, Recording Devices, Video Surveillance
Brand: Hanwha Vision
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Manufacturer Part Number | HRX-1635-4TB |
| Product Model | HRX-1635-4TB |
| Product Name | 16 Channel Pentabrid DVR |
| Product Series | HD+ |
| Product Type | DVR |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of USB Ports | 2 |
| USB | Yes |
| VGA | Yes |
| Miscellaneous | |
| Environmental Certification | KC, UKCA |
| Network & Communication | |
| Ethernet | Yes |
| Others | |
| ADI Part Number Replaces | SQ-HRX16324T |
| Model Number Replaces | HRX-1632-4TB |
| Physical Characteristics | |
| Color | Black |
| Depth | 15.15" |
| Height | 3.46" |
| Weight (Approximate) | 17 lb |
| Width | 17.32" |
| Power Description | |
| Input Voltage | 100-240V AC |
| Maximum Power Consumption | 200W |
| Storage | |
| Hard Drive Capacity | 4TB |
| Technical Information | |
| HD Recording | Yes |
| Maximum Frame Rate | 30 fps |
| Number of Channels | 16 |
| Storage Capacity | 4TB |
| Video Signal Format | NTSC, PAL |
| Warranty | |
| Limited Warranty | 3 Year |
