Description

**WizSense Surveillance Series: Advanced Security Solutions**

WizSense Surveillance devices integrate Dahua’s robust Analytics+ technology with a user-friendly interface, enhancing security with features like Smart Motion Detection and Perimeter Protection. These capabilities focus on identifying human and vehicle activity while ignoring irrelevant images, thus capturing essential video content and minimizing false alarms. WizSense offers cost-effective, powerful surveillance solutions for small to medium-sized businesses.

**System Overview**

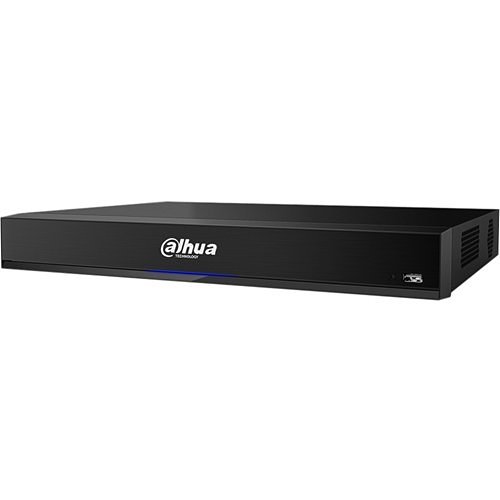

The X82R Series HDCVI DVR brings advanced security features with 4K recording on every HDCVI channel, leveraging HDCVI technology for easy integration into existing video surveillance setups without the need for new infrastructure. With Penta-brid access technology, it supports seamless recording across HDCVI, AHD, TVI, CVBS, and IP channels, delivering 4K resolution on all HDCVI or IP sources. This makes it ideal for monitoring public spaces, retail outlets, transport hubs, private properties, and educational environments.

**Key Features**

– **Perimeter Protection:** Dahua’s Analytics+ incorporates Tripwire and Intrusion functions with customizable tripwire settings for automated surveillance in restricted areas. This feature enhances detection accuracy and reduces false alarms caused by environmental factors.

– **Smart Motion Detection:** Part of Dahua’s Analytics+, this feature enhances alarm precision by analyzing scenes for human or vehicular motion and filtering out extraneous alerts triggered by non-relevant movements.

– **AI Coding:** AI Coding prioritizes human and vehicle recognition in video scenes, dynamically adjusting bit rate allocation to reduce storage demands by up to 50% compared to the H.265 compression standard.

– **Smart H.265+:** This optimized version of the H.265 codec uses advanced encoding tactics to maintain video quality while reducing bit rate and storage needs by up to 90% compared to the H.264 standard.

– **4K Resolution:** The HDCVI DVR supports 4K recording on HDCVI and IP channels, quadrupling the resolution of standard 1080p cameras for unparalleled video clarity and forensic detail.

– **HDCVI/AHD/TVI/CVBS Auto-detect:** The DVR automatically identifies incoming camera signals, simplifying installation and operation.

– **Long Distance Transmission:** HDCVI technology ensures real-time, high-quality video transmission over long distances using existing RG-59, RG-6, or CAT 6 UTP cabling.

General Information
Bandwidth128 Mbps
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberX82R2A6
Product LineWizSense
Product ModelX82R2A
Product Name4K 8Channel 1U Penta-brid HDCVI DVR
Product SeriesPro
Product TypeVideo Surveillance Station

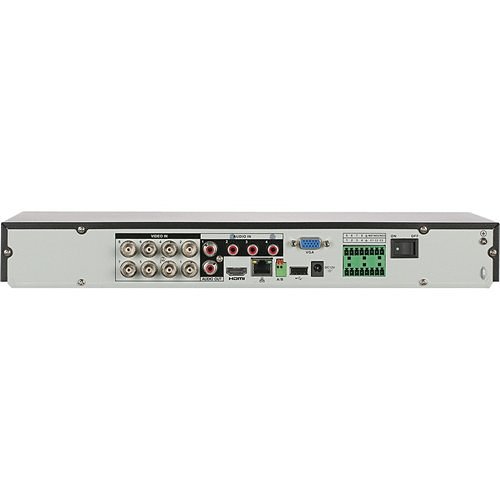

Interfaces/Ports
Composite Video InYes
HDMIYes
Number of VGA Out1
Total Number of Audio In Ports4
Total Number of Audio Out Ports1
USBYes

Network & Communication
EthernetYes
Remote ManagementYes

Physical Characteristics
Depth11.3"
Weight (Approximate)3.97 lb
Width14.8"

Storage
Hard Drive Capacity6TB
Recording Formats4K

Technical Information
Connectivity TechnologyWired
HD RecordingYes
Maximum Frame Rate30 fps
Storage Capacity6TB
System ComponentsDigital Video Recorder
Total Number of Channels8
Video FormatsH.264, H.265
Video Signal FormatNTSC

Video
Maximum Resolution8MP

Warranty
Limited Warranty5 Year
