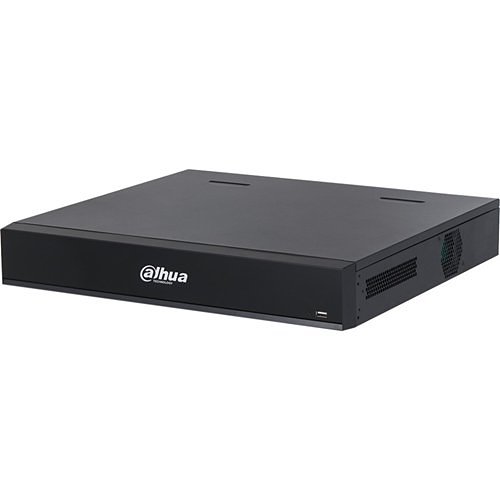

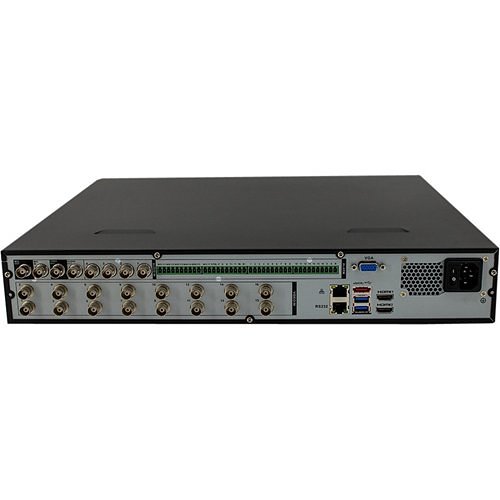

Dahua X84R3L8 Ultra-Series 4K 16-Channel Pentabrid HDCVI DVR with Analytics+, 128Mbps, 1.5U, 8TB HDD

Brand: Dahua

Dahua X84R3L8 Ultra-Series 4K 16-Channel Pentabrid HDCVI DVR with Analytics+, 128Mbps, 1.5U, 8TB HDD

Name: Dahua X84R3L8 Ultra-Series 4K 16-Channel Pentabrid HDCVI DVR with Analytics+, 128Mbps, 1.5U, 8TB HDD
Brand: Dahua
SKU: X84R3L8
Availability: InStock

In Stock

Special Order

$1,657.19

Here are some of the key features of our advanced security surveillance systems:

- Capture 4K video at 15 frames per second across all HDCVI channels.
- Supports dual-stream video technology for optimized performance.
- Utilizes Smart H.265+ and Smart H.264+ dual codecs for efficient compression.
- Features auto-detection and auto-configuration of video inputs for ease of use.
- Supports up to 32 IP camera channels, each capable of handling up to 12 MP resolutions.
- Allows for a maximum incoming bandwidth of 128 Mbps.
- Integrated Analytics+ functions, including face recognition, perimeter protection, and smart motion detection capabilities.
- Includes a spot output via HDMI 2 output.
- Backed by a five-year warranty when purchased through an authorized Dahua dealer.

SKU: X84R3L8 Categories: Hybrid Video Recorders, Recording Devices, Video Surveillance Brand: Dahua

Description

The X84R Series HDCVI DVR delivers 4K Ultra HD recording on each HDCVI channel, complemented by a suite of cutting-edge features and functionalities. Utilizing HDCVI technology, the X84R ensures seamless integration into existing video surveillance infrastructures, making use of current networks, cabling, and cameras. Its innovative penta-brid access technology allows simultaneous recording of video from HDCVI, AHD, TVI, CVBS, and IP sources, providing 4K resolution on every HDCVI or IP channel for unparalleled clarity.

General Information
Bandwidth	128 Mbps
Brand Name	Dahua
Manufacturer	Zhejiang Dahua Technology Co., Ltd.
Manufacturer Part Number	X84R3L8
Product Line	WizSense
Product Model	X84R3L
Product Name	4K 16Channel Penta-brid HDCVI DVR
Product Series	Ultra
Product Type	Video Surveillance Station

Interfaces/Ports
Composite Video In	Yes
Composite Video Out	Yes
HDMI	No
Number of VGA Out	1
Total Number of Audio In Ports	4
USB	Yes

Miscellaneous
Country of Origin	CN

Network & Communication
Ethernet	Yes
Remote Management	Yes

Physical Characteristics
Depth	16.3"
Weight (Approximate)	10.80 lb
Width	17.3"

Storage
Hard Drive Capacity	8TB
Recording Formats	4K

Technical Information
Connectivity Technology	Wired
HD Recording	Yes
Maximum Frame Rate	30 fps
Power Consumption	30W
Storage Capacity	8TB
System Components	Digital Video Recorder
Total Number of Channels	16
Video Formats	H.264, H.265
Video Signal Format	NTSC

Video
Maximum Resolution	4K

Warranty
Limited Warranty	5 Year
