Description

The latest advancements in surveillance cameras are pushing the boundaries of technology, with increasing resolutions and additional lenses enhancing their capabilities. These cutting-edge cameras can simultaneously capture expansive scenes and intricate details. On the backend, sophisticated network video recorders (NVRs) are significantly enhancing user experiences. At the forefront of this innovation is Hikvision’s newly launched M-Series NVR, which has undergone comprehensive upgrades to deliver high-resolution, sharp imaging for wide areas. The M-Series NVRs support dual-channel 32 MP decoding and 8K resolution, or dual-4K output for models with 4 HDD bays and above, setting a new standard in security video and beyond.

Certifications
TAA CompliantNo

General Information
Bandwidth256 Mbps
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-7716NI-M4/16P
Product LineUltra
Product ModelDS-7716NI-M4/16P

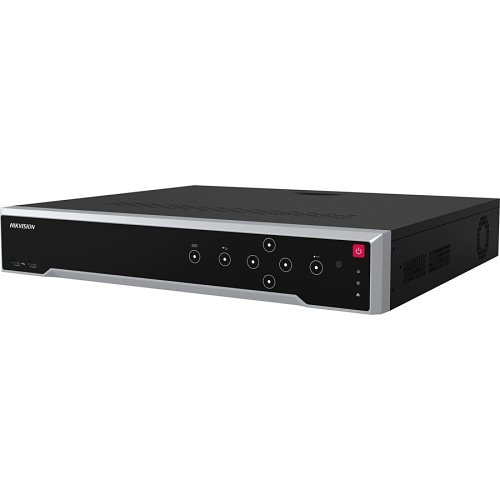

Product Name16-Channel 1.5U 16 PoE 8K NVR
Product SeriesM
Product TypeVideo Surveillance Station

Interfaces/Ports
Composite Video OutYes
HDMIYes
Number of VGA Out1
Total Number of Audio In Ports1
Total Number of Audio Out Ports1
USBYes

Network & Communication
EthernetYes
Remote ManagementYes

Others
ADI Part Number ReplacesHX-N7716IP, HX-N9616I
Model Number ReplacesDS-7716NI-I4/16P, DS-9616NI-I8

Physical Characteristics
Depth15.7"
Height3"
NVR Weight11.02 lb
Weight (Approximate)11 lb
Width17.5"

Storage
Hard Drive CapacityNo HDD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution32MP
HD RecordingYes
Maximum Frame Rate30 fps
Power Consumption15W
Storage CapacityNo HDD
System ComponentsNetwork Video Recorder
Total Number of Channels16
Video Signal FormatNTSC, PAL

Video
Maximum Resolution4MP

Warranty
Limited Warranty3 Year
