Description

**4K Recording Resolution**
Digital Watchdog’s video recorders provide exceptional clarity in any resolution. The enhanced resolution facilitates detailed forensic analysis by allowing users to zoom in on specific areas within the camera’s field of view.

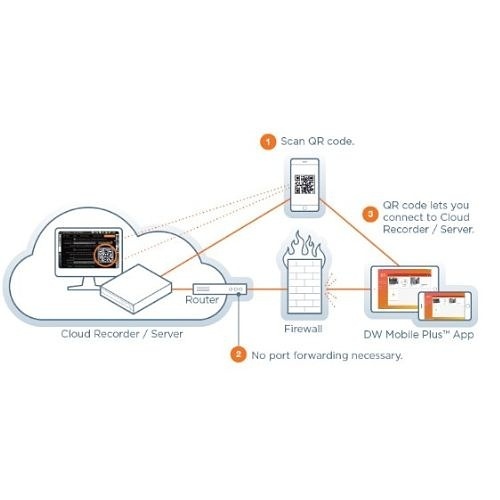

**PathFinder™ Technology**
Achieve secure and straightforward remote access with NAT Traversal capabilities, including STUN/TURN support, without needing to open additional ports.

**CCIP™ System Encryption**
With CCIP™ (Closed Circuit IP) encryption, the security is amplified when the VMAX IP G4™ system initiates an encrypted stream request from the camera. The camera then implements a secondary encryption of its RTSP stream using TLS, protected by user IDs and passwords, ensuring that the secured stream is accessible only to the initiating recorder.

**C3™ Central Management System**
The C3™ CMS elevates video management, providing centralized control over all surveillance systems via a user-friendly interface. Programmable alerts empower real-time decision-making and device health management.

**DW Witness™ Mobile Application**
The DW Witness™ app transforms any iOS® or Android® device into a mobile surveillance camera. With a single tap, users can broadcast live video to the VMAX IP G4™ NVR, effectively serving as a “black box” for field personnel.

**Mobile Push Notifications via myDW App**
Receive event-driven notifications directly to your mobile device through the myDW app from Digital Watchdog’s recorders.

**Real-Time Streaming Protocol (RTSP)**
RTSP facilitates live video streaming between Digital Watchdog VMAX® G4 recorders and third-party applications. It serves as an alternative to ONVIF integration, providing additional backup locations for recorded video and enabling smart home connectivity and live streaming services, suitable for CCTV monitoring in public venues like animal sanctuaries.

**Status Monitoring**
Gain real-time insights into system connections with a comprehensive graphical overview, complete with alerts delivered via email or text for immediate notification.

Certifications
TAA CompliantYes

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWVG494P
Product LineVMAX IP G4
Product ModelDW-VG494P
Product Name4-channel PoE NVR with 5 Bonus Channels
Product TypeVideo Surveillance Station

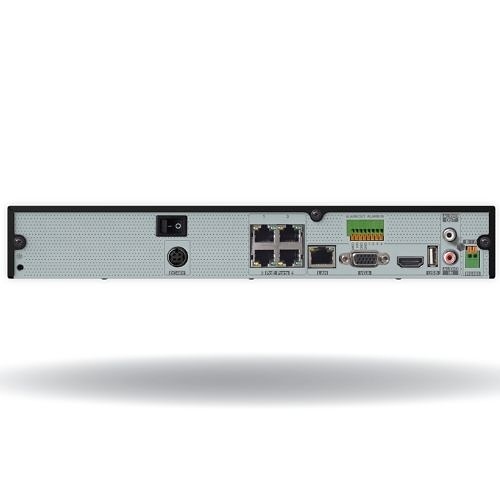

Interfaces/Ports
Number of VGA Out1
Total Number of Audio In Ports1
Total Number of Audio Out Ports1
USBYes

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes

Network & Communication
EthernetYes
Remote ManagementYes

Others
ADI Part Number Replaces6K-VP9P
Model Number ReplacesDW-VP9P

Physical Characteristics
ColorBlack
Depth9.8"
Height1.8"
NVR Weight2.64 lb
Width11.8"

Storage
Hard Drive CapacityNo HDD
Recording Formats4K

Technical Information
Connectivity TechnologyWired
HD RecordingYes
Maximum Frame Rate270 fps
Power Consumption60W
Storage CapacityNo HDD
System ComponentsNetwork Video Recorder
Total Number of Channels9

Video
Maximum Resolution3840 x 2160

Warranty
Limited Warranty5 Year
