Description

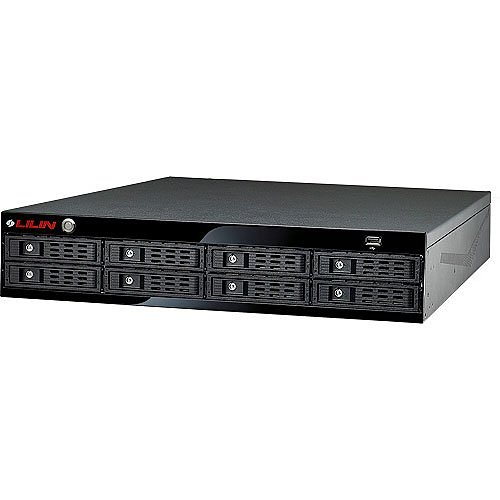

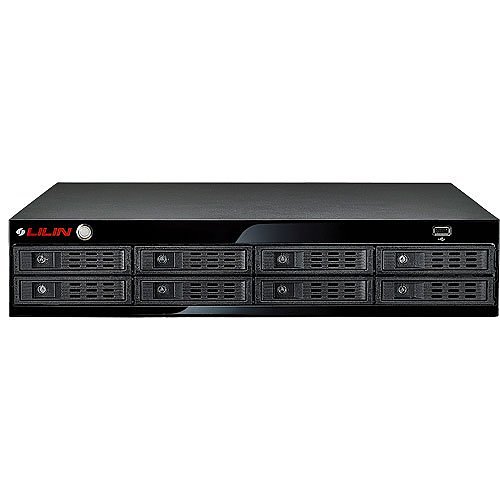

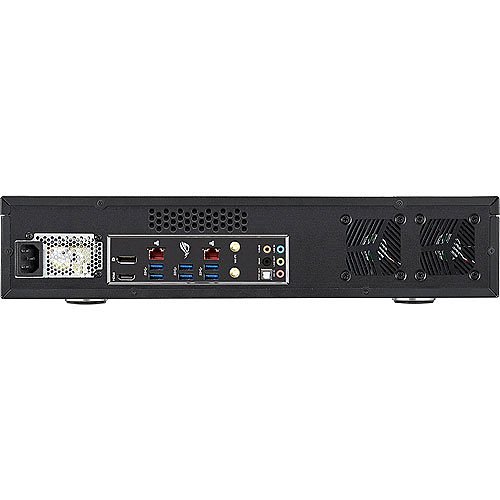

The LILIN NAV08072A 72-channel recorder is a versatile solution for surveillance systems, supporting LILIN IP cameras, PTZ dome IP cameras, DVRs, and NVRs. This advanced recorder offers up to 72-channel network streaming and recording in resolutions of 1080P, 3M, 4M, 5M, 8M, and 12M. It is equipped with hardware RAID for enhanced data protection, dual-port Gigabit Ethernet for robust connectivity, and dual monitor support for effective video management. The system enables multi-channel playback for both remote and local access, and it includes failover, video archiving, and video synchronization capabilities.

With the ability to handle continuous and scheduled recordings, the NAV08072A features a range of alarm detections such as motion, audio, and intelligent video surveillance (IVS) functionality, as well as optional ANPR for license plate recognition. It supports video streams up to 1080P at 120FPS and 4K at 30FPS, offering optimal clarity and performance. Additional capabilities include simultaneous playback of 72 channels, camera groupings, robust authentication, two-way audio, and dual-streaming, providing exceptional flexibility in managing surveillance video effectively.

Certifications
NDAA CompliantYes
TAA CompliantYes

Controllers
RAID Levels0, 1, 10, 5, 50, 6, 60

General Information
Brand NameMerit LILIN
Manufacturer Part NumberNAV08072A-2X12TB
Product SeriesNAV

Miscellaneous
ADI Cloud Storage EligibleYes

Network & Communication
Remote ManagementYes

Storage
Hard Drive Capacity24TB

Technical Information
Connectivity TechnologyWired
Storage Capacity24TB
Total Number of Channels72

Video
Maximum Resolution8MP
